Servo Type Flat Top Wave Aluminum Radiator Flat Fin Machine with Hemming Function

  • 1 - 1 Sets
    $51,000.00
  • >=2 Sets
    $50,500.00
Model Number:
CPJ-GP
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 90 75 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Type:
Compressor
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Certification:
CE, GS
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
machine name:
radiator flat fin machine
fin use:
radiator
fin type:
opening, no louver, hemmed
working principle:
fin rolling mechanism
control system:
PLC and HMI
aluminum fin height:
7.8mm
pneumatic system working pressure:
0.6Mpa
PLC brand:
Delta, Taiwan
Fin Rolling Unit Life:
about 200, 000,000 fin crests
Working Speed:
0-60M/Minute
Product Certification Verified
CE Certified.
Valid from 2017-12-28 until 2022-12-27
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case suitable for sea transportation
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 90 75 To be negotiated
Video Description
Product Description

Product Application

The radiator flat fin machine with hemming function is used to produce heat exchange wavy fins without louver.
The radiator flat fin machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cutting function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.
The fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.

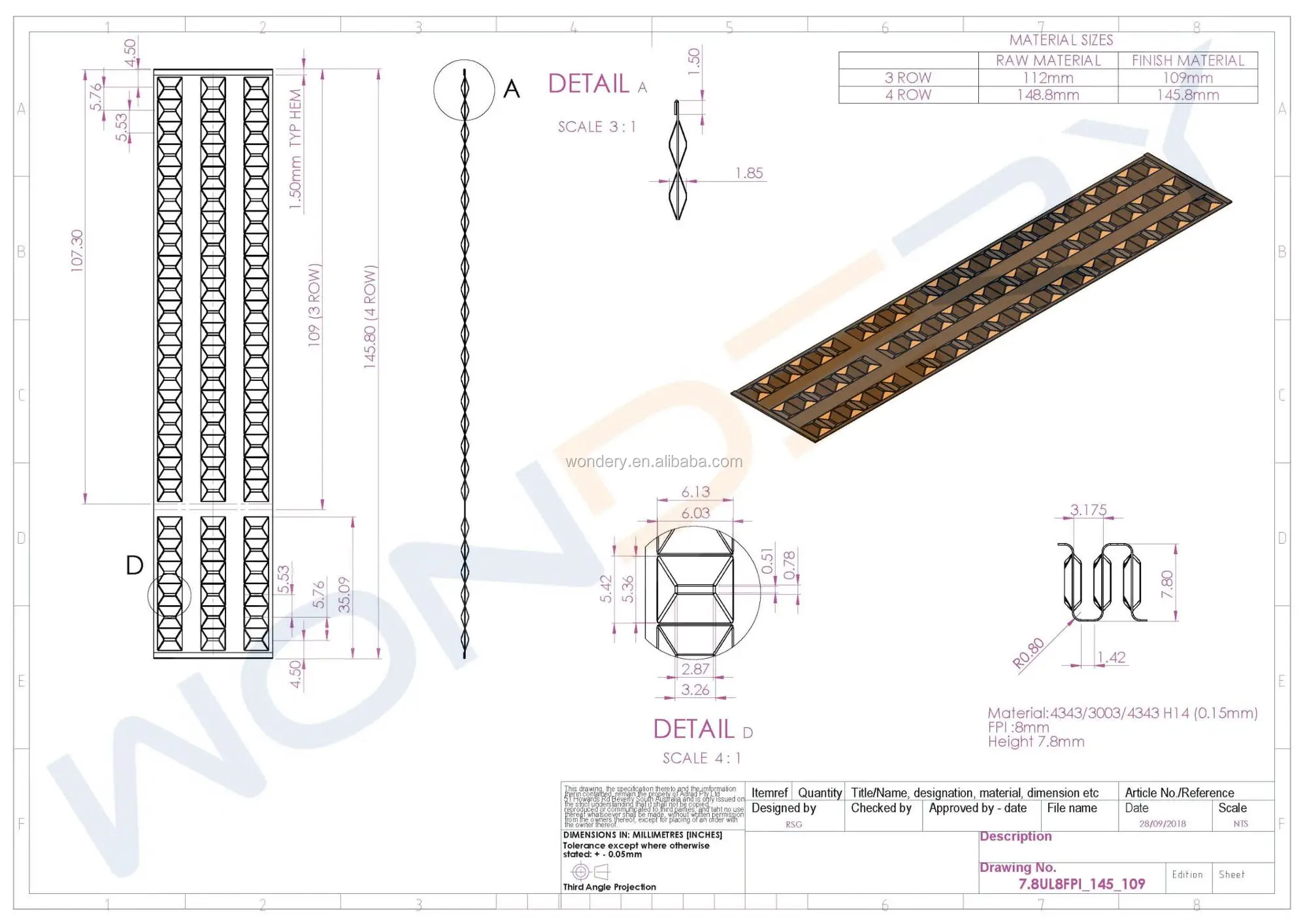

 Technical Parameters of radiator flat fin machine
Fin width:  145.8mm;
Fin height: 7.8±0.05mm;
Fin pitch : 3.175±0.1  mm;
Aluminum strip thickness β: 0.15  mm;
Fin shape: Flat Top;
Fin R curve:  0.8 ;
Aluminum strip material: 4343/3003/4343 H14
The red informations by customer request
Fin tooling blade material: cobalt-containing high speed steel forged parts;
Fin tooling blade service life:
≥250 million fin convolutions for pure Aluminum strip
Technical Parameters of Aluminum Fin Forming machine
Aluminum strip coil size: inner diameter: φ200±20 mm (adjustable); outer diameter: ≤1500mm;
Fin forming capacity: feeding speed: 0-100m/min; 1000-4000 fin convolutions per minute; stepless regulation by inverter control;
Cutting capacity: max 60 times/ min
Protection measure: organic glass protection cover over the main machine body;
Cutting accuracy: servo control;  ±0 fin; cut at the crest;
Power supply: 3-phase, 480V, 50Hz   Total power: 4.5KW
Air source requirement: air pressure >0.4Mp, Q>0.1m3/ min, dry and cool compressed air;
Equipment weight: -2500Kg
Equipment overall size: 5000X1100X1900mm

Configuration


NO
ITEM
BRAND
1
Inverter
Delta, Taiwan
2
PLC
Delta, Taiwan
3
Servo motor
Delta, Taiwan
4
Servo magnifier
Delta, Taiwan
5
Pneumatic components
AIRTAC, Taiwan or SMC, Japan

Introduction to each unit

1. Magnetic powder brake: equipped on the decoiler frame. The decoiling speed is controlled by the resistance force of the magnetic powder brake.
2. Decoiler: The coil tray supports the coil and it can tighten or loosen the tray by adjusting the tray claw. The changing resistance value of the potentiometer automatically controls the resistance force of the magnetic powder brake. When there is an emergency, the decoiler can be stopped immediately.
3. Feeding resistance adjustment structure: the radiator flat fin machine  is set with an automatic feeding system. The damper controller controls the resistance force of the magnetic powder brake to keep the coil feeding speed matching the feeding speed of the fin forming unit.
4. Feeding tensile force adjustment mechanism: consisting of strip run-out detection mechanism, bracket, and pneumatic cylinder. The fin height can be micro-adjusted by changing the working pressure of the cylinder. The strip run-out detection mechanism could cut the power supply of the whole machine when the Aluminum strip runs out.
Detailed Images

Edge Folding Device.

The radiator flat fin machine  is designed with the edge folding device so as to fold the two ends of the strip on the length direction to increase the strength of the fin. There are two separate folding devices for different fin widths.

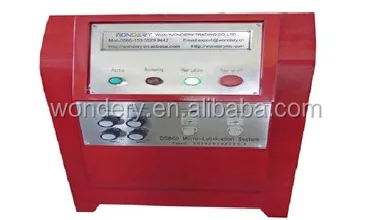

Fin Lubrication Device: microspray system.

Our micro-spray precision lubrication device has a daily volatile oil consumption of 4 liters while the traditional intermittent mist spray system has a daily consumption of 10 liters. The lubrication device can provide an even oil film layer to the aluminum strip and ensure sufficient lubrication for the fin forming unit. In this way, the blade life can be assured and the volatile consumption is reduced.

Fin Rolling Machine.

Our factory has its own machining centers, and CNC mills. The fin forming roller and its blades are all made by our own, which makes our machine cost more competitive in the market.
The fin forming roller is changeable, and different fin models can be produced on the same machine.

Related Products

Copper Radiator Fin Forming

Machine

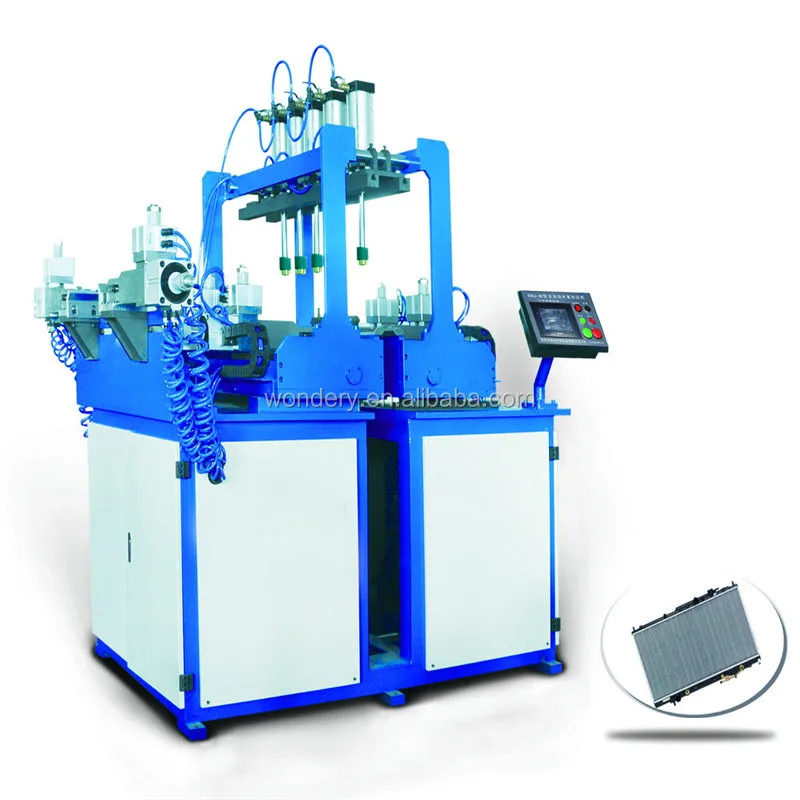

       Aluminum Radiator Core

       Builder Machine

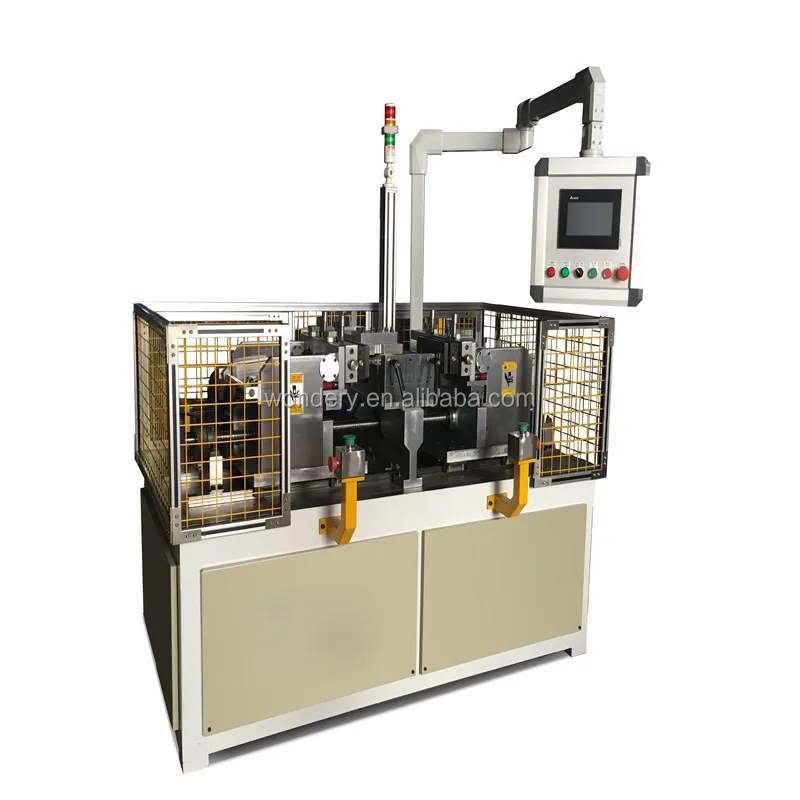

Aluminum Radiator Plastic Tank Clinching Machine


Copper Radiator Flat Fin Machine      Condenser Core Builder Machine      Radiator Leak Testing Machine


Our Company

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories.

We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other products, and HVAC condensers and evaporators.


Auto Condenser Production Line Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.


Auto Radiator Production Line Brazing radiator machines: fin machine, radiator core
 builder machine, plastic tank clinching machine, radiator leak testing machine/leak detector, header and side plate mold, continuous brazing furnace; mechanical radiator machines: high speed fin punching machine, fin die, tube-to-fin expansion machine, tube-to-header expansion machine, plastic tank clinching machine, etc;

copper radiator machine line:fully-automatic tube making machine, copper fin making machine, gas-fired core body brazing furnace, header tinning furnace, manual core builder machine.


 Evaporator Production Line
Including: fin die (single-punch type or progressive type); serpentine tube bender; evaporator core builder machine;
HVAC Evaporator and Condenser Production Line Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube straightening and cutting machine; fin press line; progressive fin die; vertical/horizontal expansion machine; others.
Molds: aluminum header plate mold, aluminum radiator plastic tank radiator, fin die (air conditioner fin die), etc;

Our Main Customers
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the fin making machine, training how to use the fin making machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
5000 (L) * 1100 (W) * 1900mm (H)
Weight
2.5T



Packaging Details
The normal package is plywood case package, and fumigation is not needed for aluminum radiator fin making machine.
