High Speed Fin Stamping Machine

FOB Reference Price:Get Latest Price
$30,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CPJG14*10
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Condition:
New
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
machine name:
Fin Stamping Machine
aluminium fin use:
radiator of heavy vehicle
fin type:
straight aluminium fin
mechanism:
stamping machine type
fin material:
Aluminum,Copper,Steel,SUS
fin height:
9.5mm
electric components brand:
Schneider, Omron, Siemens, CHINT, Delta, etc.
punching speed:
0-120SPM
aluminum fin pitch:
11FPI
aluminium fin width:
300mm-500mm
Product Certification Verified
CE Certified.
Valid from 2015-09-08 until 2049-12-31
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case suitable for sea transportation
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

Fin StampingMachine

The  aluminium fin stamping  machine is used to produce the straight fin with height 9.5mm.
The fin machine is also called as fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.

SPECIFICATIONS FOR aluminium fin stamping  machine
Aluminum strip thickness: 0.01inch;
Max effective fin width : 310mm;
 Raw material:  3003 Aluminum alloy strip coil; H14;
 Power supply: 3Phase, 380V, 50Hz;
 The equipment is set with safety signs.
Control loop current: 24V DC;
 Equipment power: 4.0KW;
Mold replacement time: < 1 hour for skilled workers;
Acceptance standard: CPK: ≧1.67;
Mold closing height: 136mm;
Working speed: max 80SPM;
Fin punch life: 2million ;
 All documents are both in Chinese and English language.

                           Technical Parameters of Aluminium Fin Stamping Machine
Control system power
4.0kw
Power supply
3P;380V±10%;50Hz±2%
Air source
Compressed air 0.5-0.8Mpa; flow rate: 0.00004m3/min;
Machine accuracy
Levelness of highest point of lower mold table
mm
≤0.03
Levelness of lowest point of lower mold table
mm
≤0.03
Levelness of mold table at ascent
mm
≤0.03
Levelness of mold table at descent
mm
≤0.03
Fin specification
Fin (height*pitch)
mm
9.5mm , 11FPI
Max effective fin width
mm
300mm
Max fin height
mm
12mm
Aluminum foil width
mm
310mm
Machine speed
Inverter control
SPM
80
Max cutting speed
Inverter control
Times/min
60
Stamping machine dimension
L*W*H
mm
1500*900*1750
Noise
db(A)
80
Weight
kg
2000

Main Features


Main Features
The aluminium fin stamping machine is specially used to produce punch fins.
1 .The column bushing of aluminum fin forming machine  is made of high-strength imported wear resistant material. It has a service life of more than 1 million times.
2 .The slide of the die of the aluminium fins press machine is of rolling ball structure which has less wear and tear and a longer service life.
3 .The tension control device of the aluminium fins press machine can keep the feeding speed matching with the cutting speed.
4 .The touch screen of the aluminium fin making machine allows the operator to set the parameters directly.
5 .The decoiler is an auxiliary equipment to the fin punching machine. It is equipped with proximity switch and control delay switch so as to control the decoiling speed.
6. The fin press machine is already installed with one set of die for producing fin of one specific specification.
The aluminium fin making machine is also called as aluminium fins press machine, fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.

The fin machine is also called as fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.

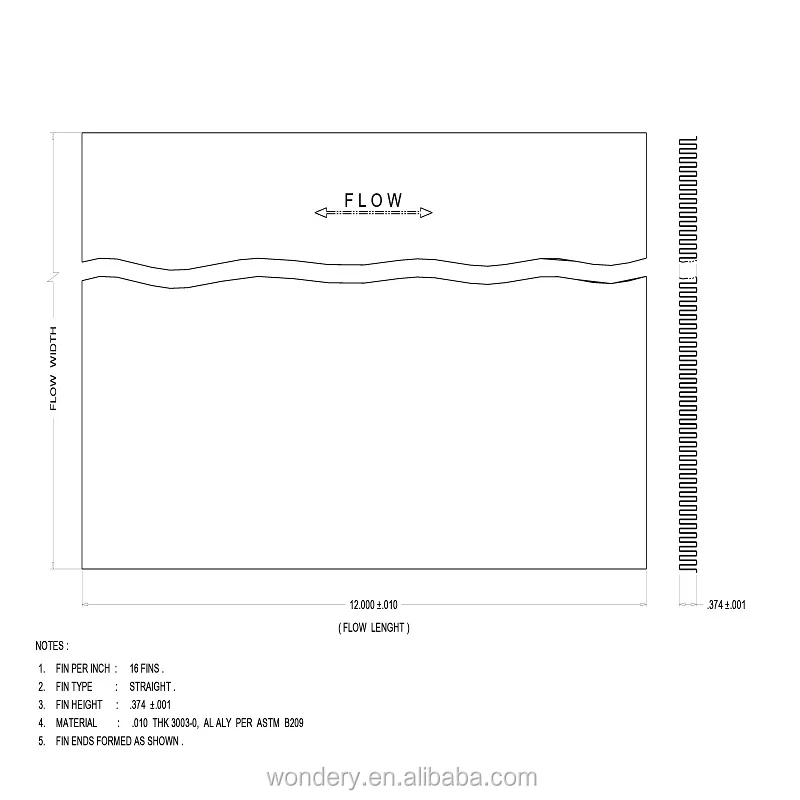

Header Mold Information of aluminium fin stamping  machine
Thickness 0.01inch;
Fin Pitch : 11FPI;
Fin Height:0.374 inch;
Fin Width:300mm;
Material: punch made of Powder high speed steel FT15;
mold seat made of 45# steel; punch plate made of Cr12;

Detailed Images

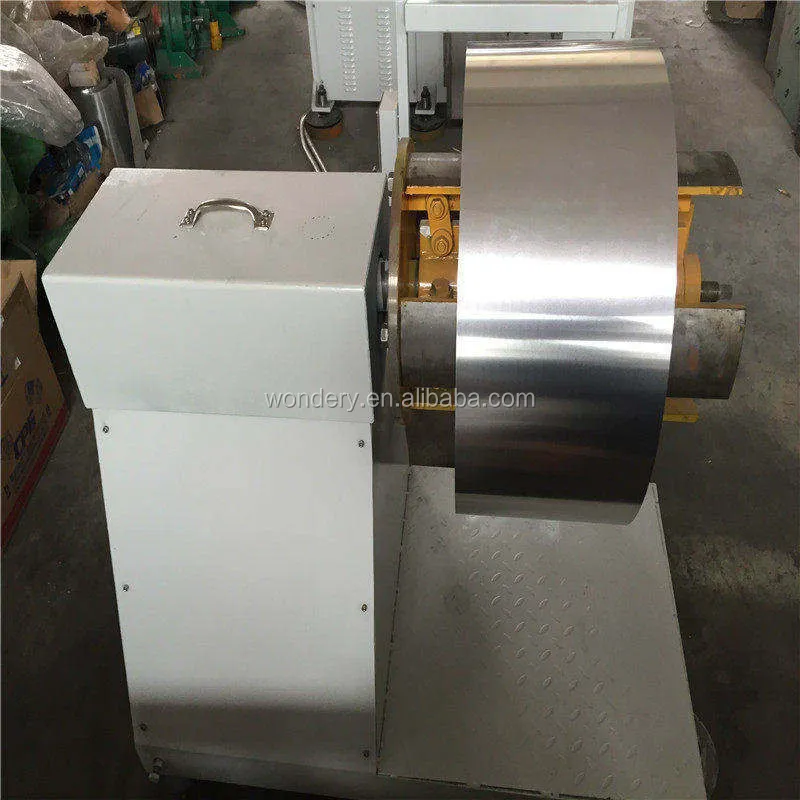

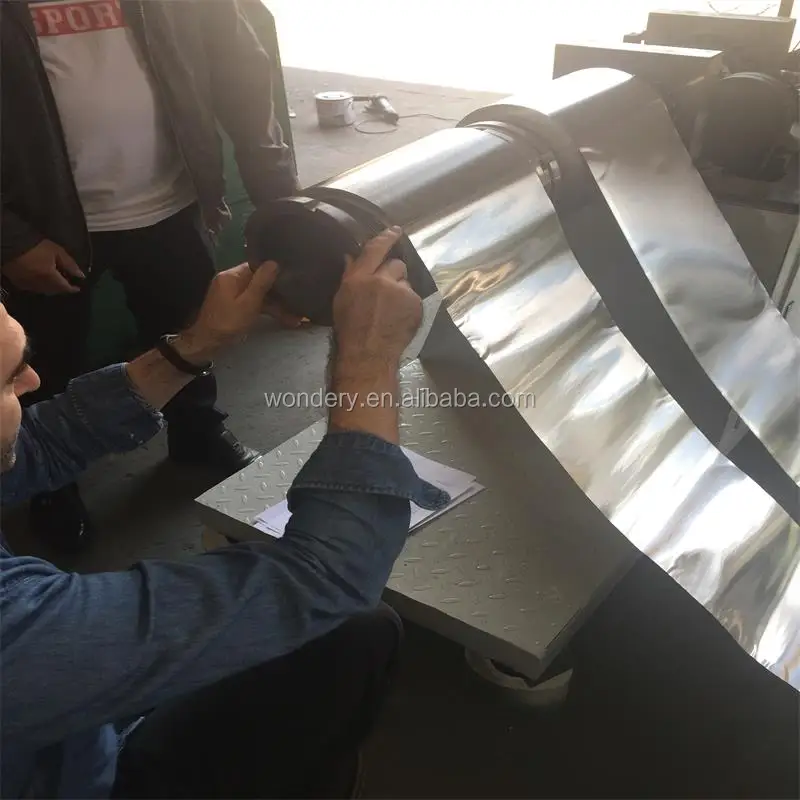

Decoiler

The automatic decoiler of the aluminium fin stamping machine is an important part of the  aluminum fin press machine. It can start or stop decoiling automatically. The fin machine is also called as fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.

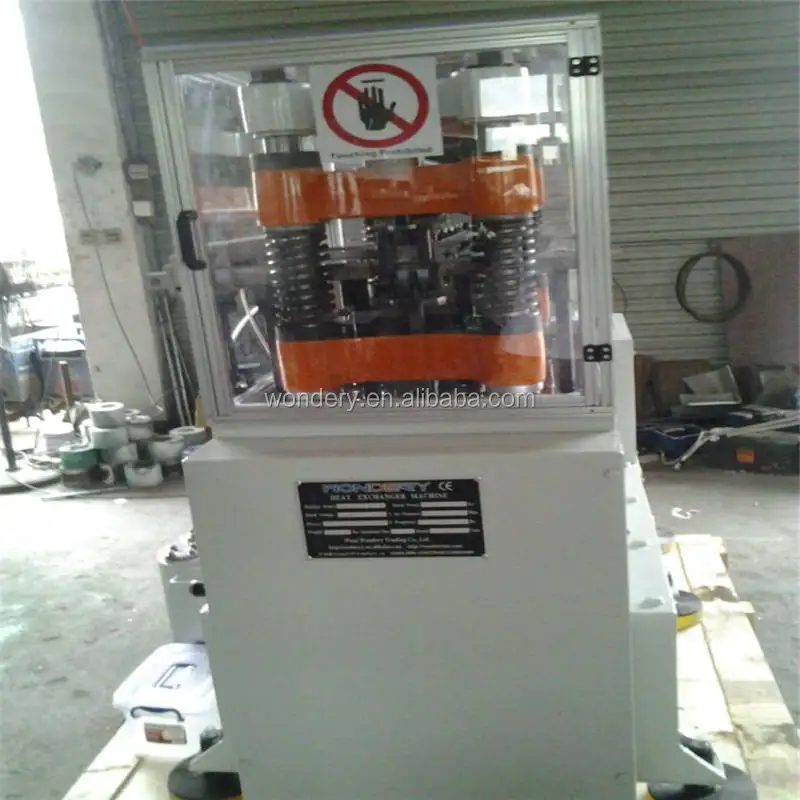

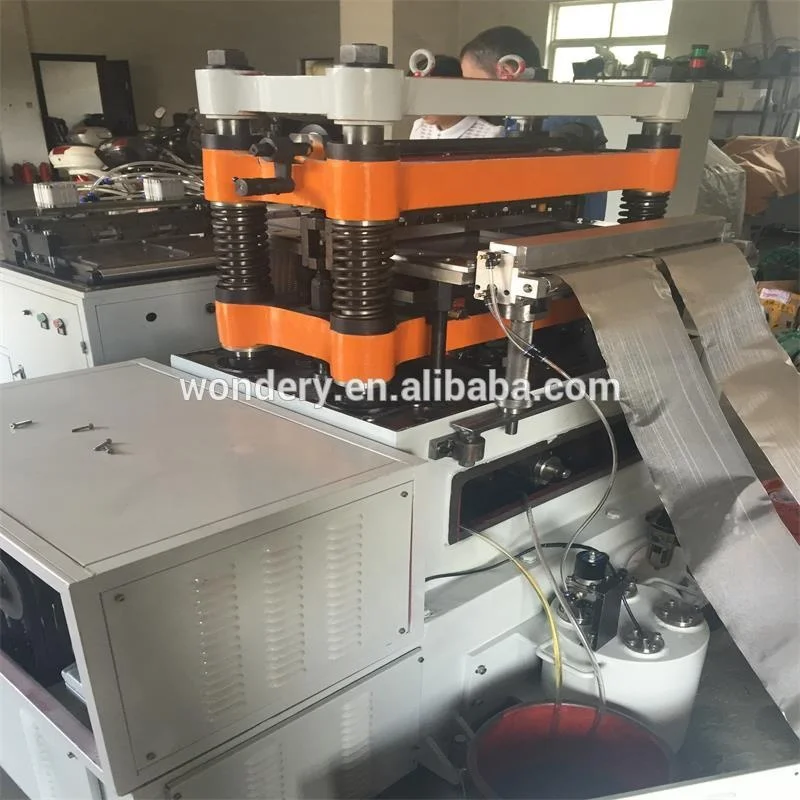

Aluminum Fin Press

The aluminium fin stamping machine is used to produce flat fins for heat exchangers by the mechanical pressing force.

The fin machine is also called as fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.

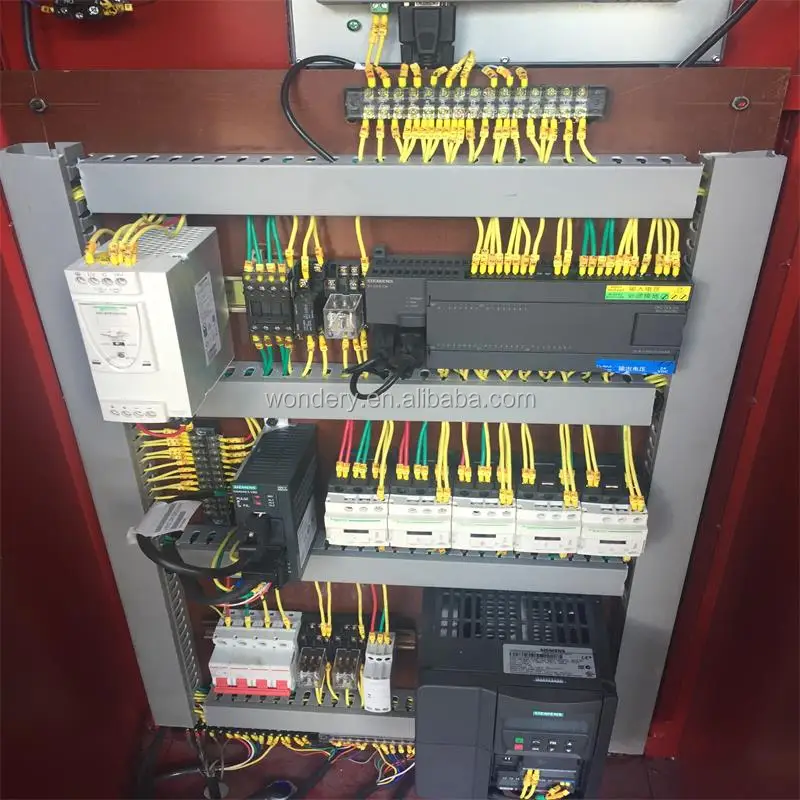

Electrical control system

The control system of the aluminium fin stamping machine employs the famous brand components such as Schneider, Siemens, Omron, Delixi, etc. The aluminium fin making machine adopts the advanced PLC and touch screen combined control. The fin machine is also called as fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.

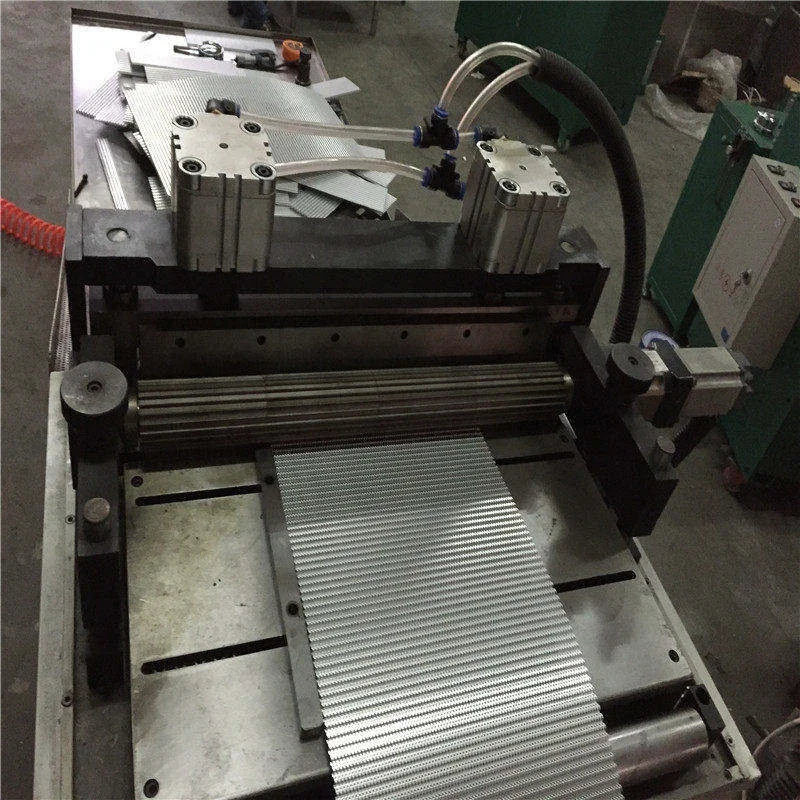

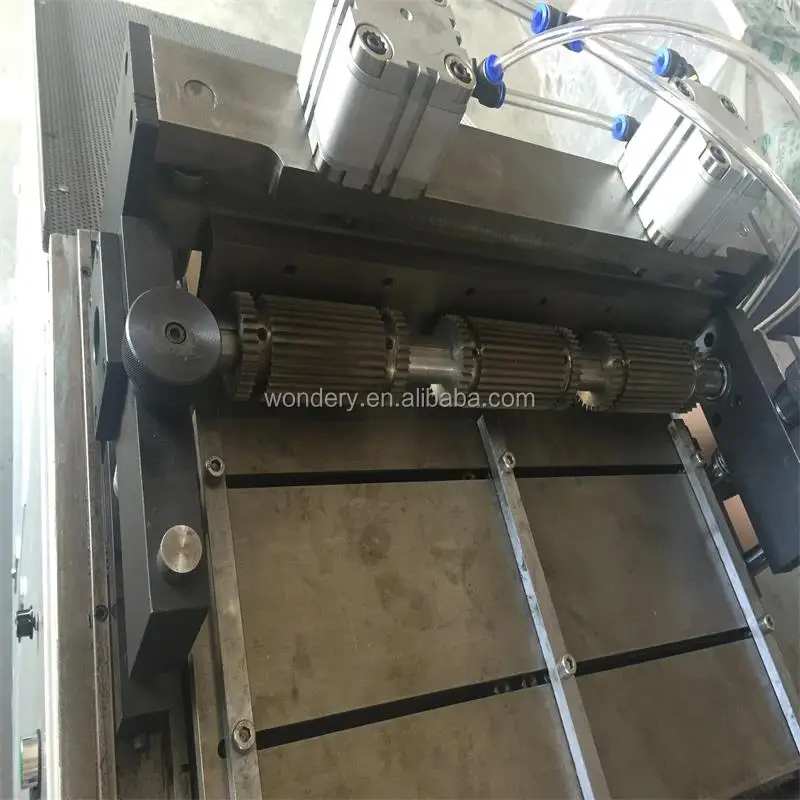

Servo cutter

The servo cutting unit of the aluminium fin stamping machine employs the servo motor to control the feeding of the material, and the air pump controls the cutter to cut the fins. The user can set the fin width and fin quantity per cut.

The fin machine is also called as fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.

Related Products

Aluminium Radiator Fin Making Machine

98.8% Response Rate

Aluminum Radiator Core Builder Machine

98.8% Response Rate

Radiator Plastic Tank Clinching Machine

98.8% Response Rate

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the aluminium fins press machine, training how to use the aluminium fin making machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Container type
20GP
Weight
2Ton



Packaging Details
The normal package is plywood case package.2-3 cases are need to pack the units separately. The fin machine is also called as fin stamping machine, fin punching machine, aluminum fin machine, fin press machine, radiator fin machine, fin forming machine, aluminum fin press machine, aluminum fin making machine.
