Servo Type Aluminum Radiator Plastic Tank Crimping Machine for High Efficiency

FOB Reference Price:Get Latest Price
$23,000.00 - $27,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KYJ-ZT
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Type:
Plastic Tank Crimping Machine
Place of Origin:
JIANGSU
Certification:
CE
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 YEAR
machine name:
radiator plastic tank crimping machine
use:
to lock together the header and the tank
application field:
aluminum radiator
working principle 1:
pushing over, pressing and clinching
working principle 2:
direct rolling
aluminum radiator core width:
1000mm
aluminum radiator core height:
1050mm
control system:
PLC and touch screen
crimping machine weight:
3200kg
crimping machine size:
2400X2200X2200mm
Product Certification Verified
CE Certified.
Valid from 2017-12-28 until 2022-12-27
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
The normal package is plywood box with dessicant bag and wrapping film. Fumigation is not needed.
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 90 To be negotiated
Video Description
Product Description

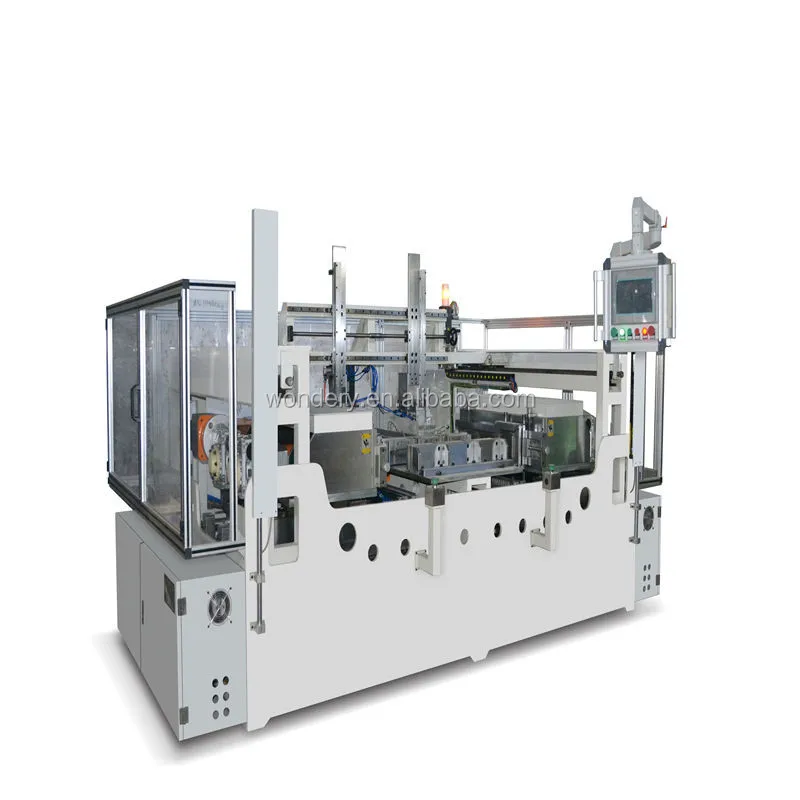

Servo Type Aluminum Radiator Plastic Tank Crimping Machine for High Efficiency

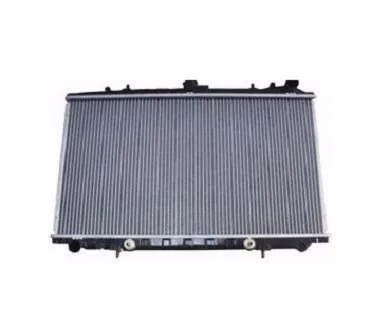

The aluminum radiator plastic tank crimping clinching machine is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This servo type plastic tank crimping machine is used to handle products of various specifications. The plastic tank crimping machine is divided into the long-side header crimping mechanism and end crimping mechanism. The radiator plastic tank crimping machine is also called as tank clinching machine.

Features of Our Plastic Tank Crimping Machine
1) The plsatic tank crimping machine is PLC controlled, HMI screen. The machine is based on servo and pneumatic power system, and the clinching of 4 sides is automatic.
2) The machine has the automatic dodging function to avoid collision with the plastic tank water pipe, and it is suitable for clinching different radiators by editting the clinching formula.
3) The plastic tank crimping machine can be PLC controlled, and clinching formulas are saved.
4) Quick and easy changing clinching tool for other size tanks
5) The plastic tank crimping machine is equipped with safety measures such as alarm lamp, and  photoelectric sensor.
SPECIFICATIONS FOR Aluminum Radiator Plastic Tank Crimping Machine
Radiator max core height: 1050mm (according to customer's specific requirement);
Radiator max core width: 1000mm (according to customer's specific requirement);
Radiator maximum thickness: 120mm (according to customer's specific requirement);
Crimped teeth quantity: max 100 pieces
Power supply: AC-220V; 50Hz
Overall dimension: 2400×2200×2200mm
Equipment weight: about 3200kg  The radiator plastic tank crimping machine is also called as tank clinching machine.
Components of Aluminum Radiator Plastic Tank Clinching Machine
Proximity switch: Omron, Japan
Linear guide and ball screw: TBI, Taiwan
Pneumatic cylinders, valves and filters: AIRTAC, Taiwan
PLC  and HMI: Delta, Taiwan;
Servo motor& driver: Delta,  Taiwan
Contactor and circuit breaker: Schneider, China;

Main Features

1) The servo type aluminum radiator clinching machine is PLC controlled, and the crimping program is set up through the touch screen.

2) The touch screen can indicate the working status, and the control system stores crimping parameters.

3) The aluminum radiator crimping machine is devided into a long header and a short header crimping device which separately crimps the long header plate and the short header plate.

4)  The aluminum raditor crimping machine can have dodge moves and step-forward moves.


The radiator plastic tank crimping machine is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. The machine consists of machine body, pneumatic upper compression mechanism, crimping claws, long-header and short-header crimping mechanism, transverse clamping mechanism, support rail, electrical control system, servo system, and pneumatic system. It can be used for crimping of different radiators. The radiator tank crimping machine has 2 crimping methods: a) push-over and crimping of headers with teeth; b) push-over movement only for headers without teeth. The radiator plastic tank crimping machine is also called as tank clinching machine.

Related Products

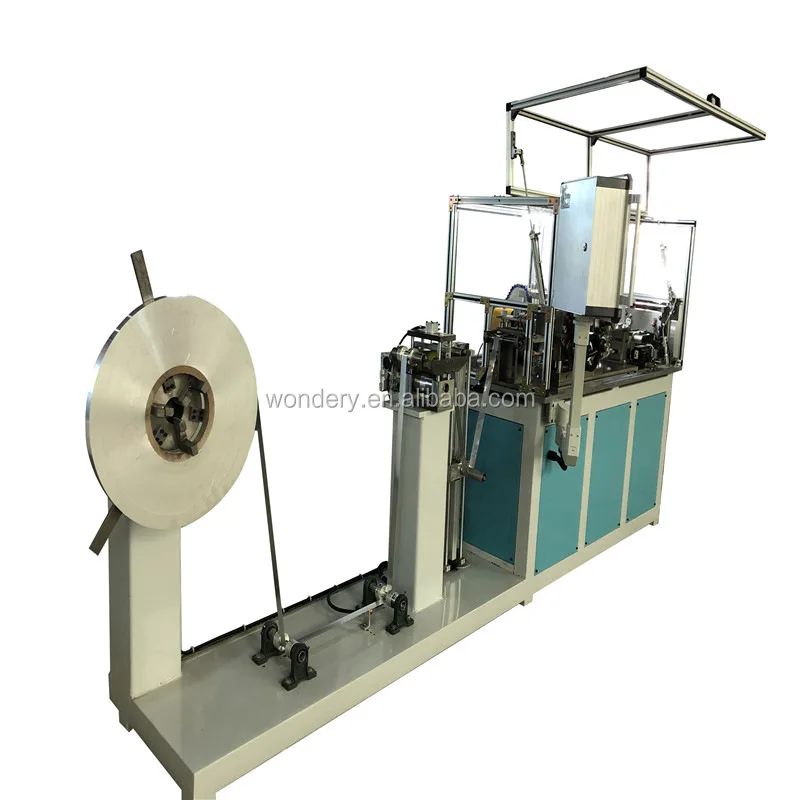

Radiator Fin Making Machine
