High Performance Gas And Electrical Resistance Industrial Furnace Manufacturer

FOB Reference Price:Get Latest Price
$10,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
car bottom oven
Usage:
Heat Treatment Furnace
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Voltage:
Onsite Condition
Dimension(L*W*H):
based on furnace size
Weight:
2T-30T
Certification:
ISO CERTIFICATE
Power (kW):
150
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Furnace type:
industrial furnace
Energy medium:
electricity and gas
Max temperature:
700℃
Normal working temperature:
600-650℃
PLC control:
Siemens S7-200 PLC
Refractory lining:
high-purity refractory fiber structure
Car bottom driving mechanism:
5.5KW motor with sprocket wheel
Oven door lifting mechanism:
electrical hoist
Heating elements:
0Cr25AL5 Resistance strip
Electrical components:
Schneider, CHINT or other quality components
Product Certification Verified
CE Certified.
Valid from 2015-09-08 until 2049-12-31
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
nude package or steel case package, suitable for sea transportation
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

Product Application

The gas and electrical combined car bottom furnace is mainly used for heating, stress release, and tempering of metal parts.

industrial furnace manufacturerindustrial furnace manufacturerindustrial furnace manufacturer

SPECIFICATION FOR Gas And Electrical Resistance Industrial Furnace
Effective working size
mm
2500×2000×2000mm(L×W×H)
Car bottom loading capacity

about 1 ton/batch
Natural gas heat value
kcaL/m3
about 8500
Natural gas consumption
m3/h
10
Heating zone
zone
2
Max working temperature
700
Normal working temperature
600-650
Burner quantity and model
2 pieces/AGS-230KW
Temperature control system precision
≤±2
Uniformity of furnace temperature
≤±5
Max temperature rising speed
℃/h
60-180
Voltage

according to customer's
Temperature Control Method

PID
Components brand

Siemens, Schneider, CHINT(or other quality domestic or overseas brand)
Electrical power

50KW+10%(1-100% adjustable)
Electrical heating wall

2 side walls and bogie
door lifting mechanism

electric hoist
Bogie moving mechanism

reducing motor
car bottom driving power
KW
5.5
Furnace door up-down

electric hoist
Air circulation fan

2 sets×5.5KW water cooling fan

Main Features

1) Using gas as medium to heat the furnace to working temperature. Then changing to electric heating model when the holding temperature is reached.


2)The industrial bogie hearth furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

3) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

4) Heating components: high temperature resistance alloy wires and strips.

5) Low noise, energy-friendliness, and stable performance.


6) Advanced CAD design.


7) Years of experiences in heat treatment process.

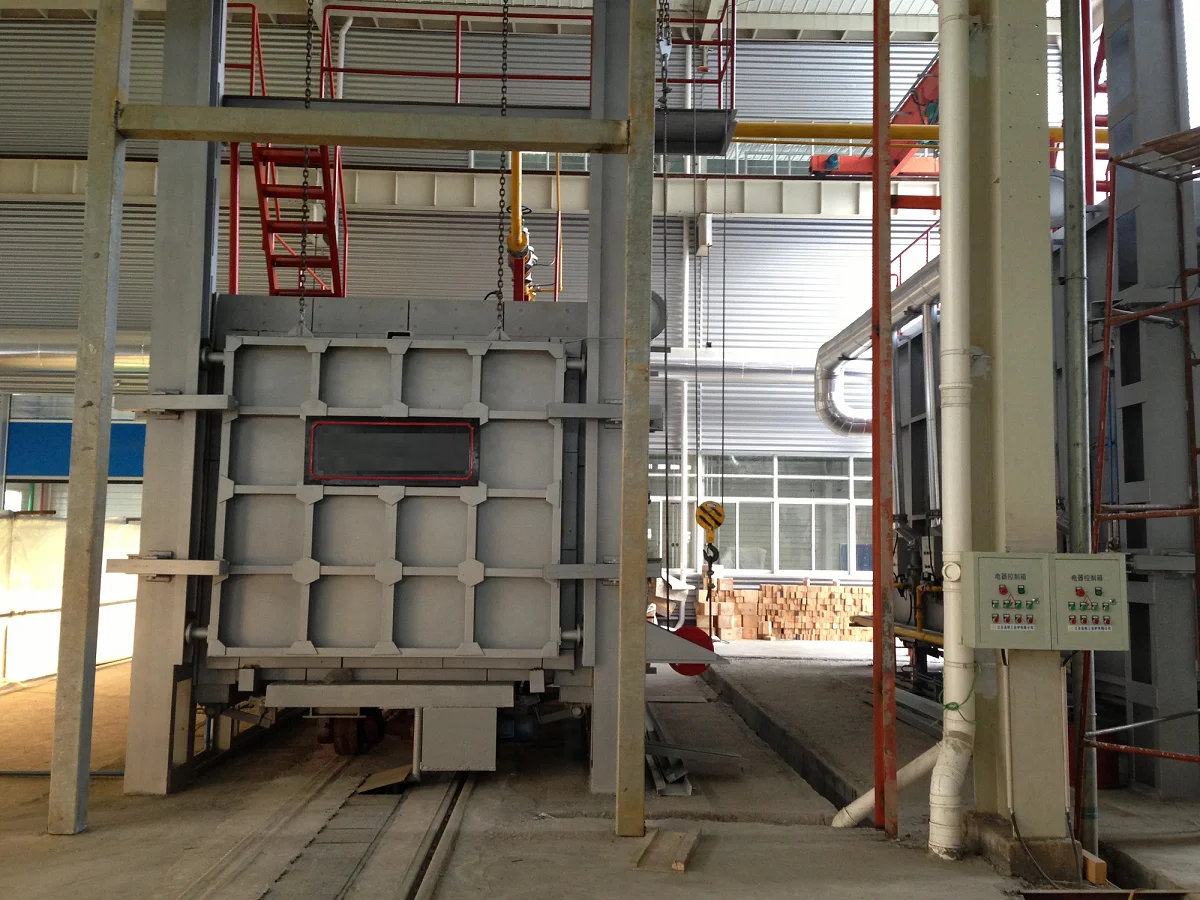

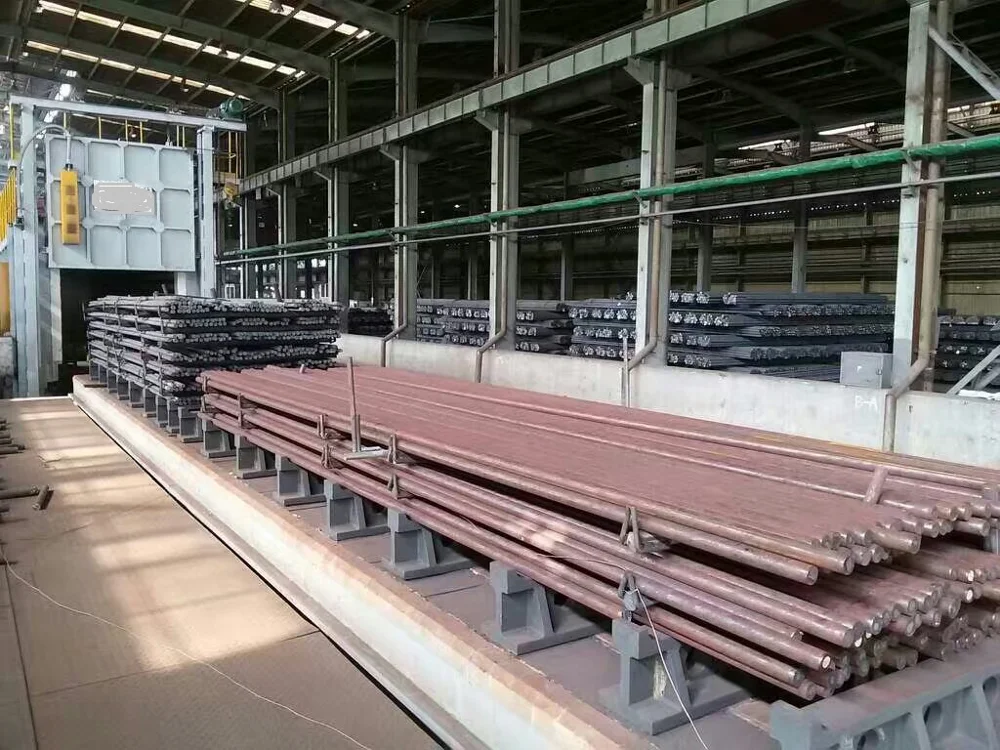

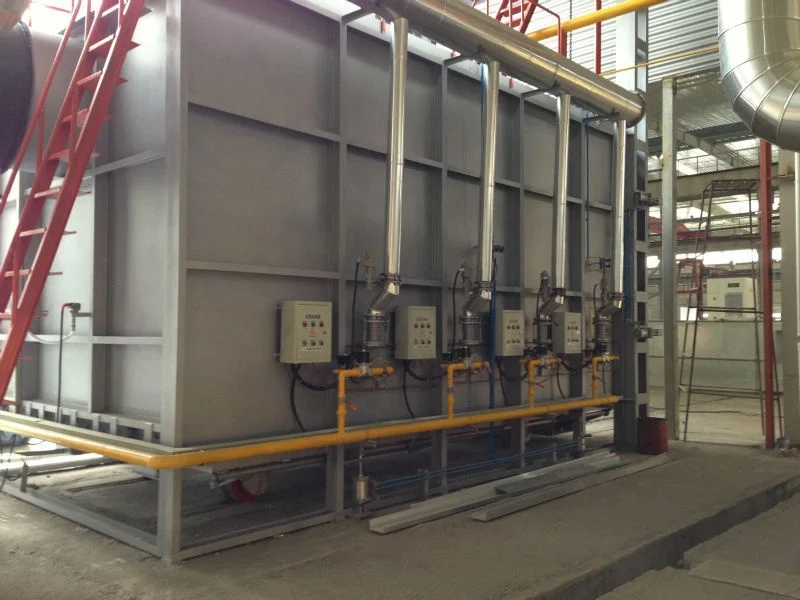

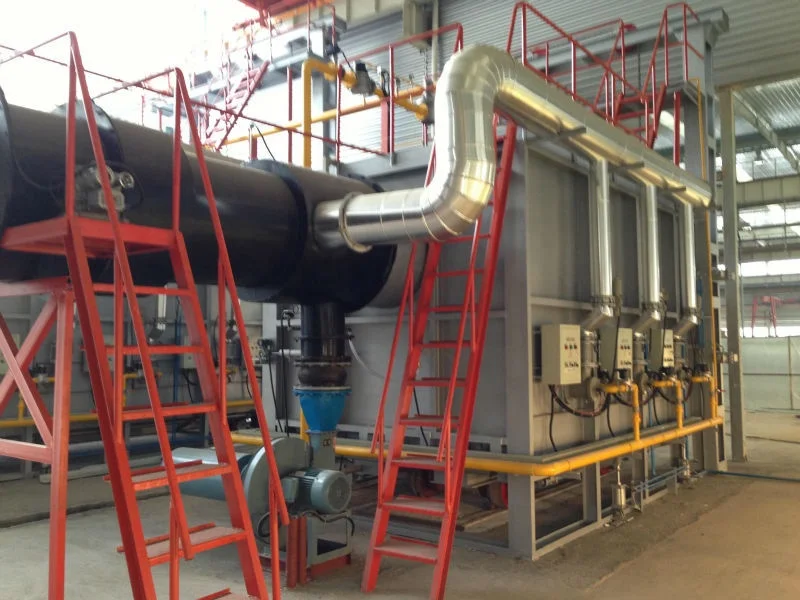

car bottom furnace

Detailed Images

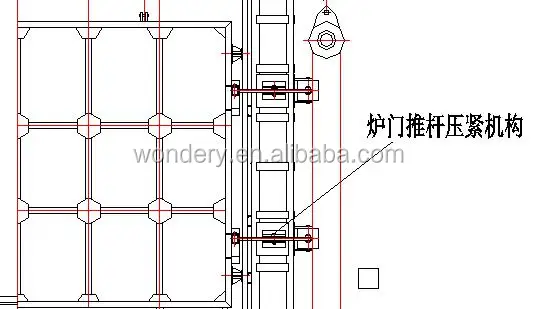

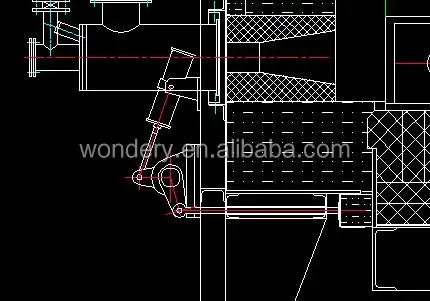

Furnace door push rod sealing Mechanism


Furnace door push rod compression mechanism


Sealing between bogie and furnace door


Sealing between bogie and rear wall


Sealing among furnace door, furnace body and bogie:

Sealing between the furnace door and the furnace body is through the electrical push rod. After the furnace door is closed, the electrical push rod pushes tight the furnace door to the door edge and the end of the bogie.
Sealing between bogie and rear wall: spring sealing structure. When the bogie is inside the hearth, the bogie compresses the rear spring and seals the rear wall.

Certifications
Packing & Delivery
Packaging
Size
depending on furnace effective size
Weight
1Ton to 30Ton



Packaging Details
The furnace body is either nude packed or packed in the steel case based on customer's requirement. The control cabinet is packed with PE film.
industrial furnace manufacturer
industrial furnace manufacturer
industrial furnace manufacturer
Packaging
Size
depending on furnace effective size
Weight
1T to 30Ton



Container Details
The small furnace can be loaded into 20GP, 40GP, or 40HQ. The big furnace should be loaded in the 20FR or 40FR.
industrial furnace manufacturer
industrial furnace manufacturer
industrial furnace manufacturer
