High Performance Gas Fired Continuous Reverberatory Melting And Holding Furnace

FOB Reference Price:Get Latest Price
$20,000.00 - $130,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WR-RJL
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
reverberatory melting furnace
Usage:
Melting Furnace
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Voltage:
cutomized
Dimension(L*W*H):
loaded into 20GP
Weight:
10Ton to 30Ton
Certification:
CE CERTIFICATE
Power (kW):
10
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
use:
Reverberatory Melting Furnace
fuel used:
natural gas, LPG gas, etc
furnace type:
stationary
furnace melting capacity:
1500-6000kg
refractory material:
casting material used
casting material life:
5 years on average
burner brand:
quality domestic brand
structure:
both melting and holding chamber
max furnace temperature:
1200 degree celsius
temperature control accuracy:
plus/minus 2 degree celsius
Product Certification Verified
CE Certified.
Valid from 2015-09-08 until 2049-12-31
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Case or Nude Package, Suitable for Sea Transportation
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

Product Application

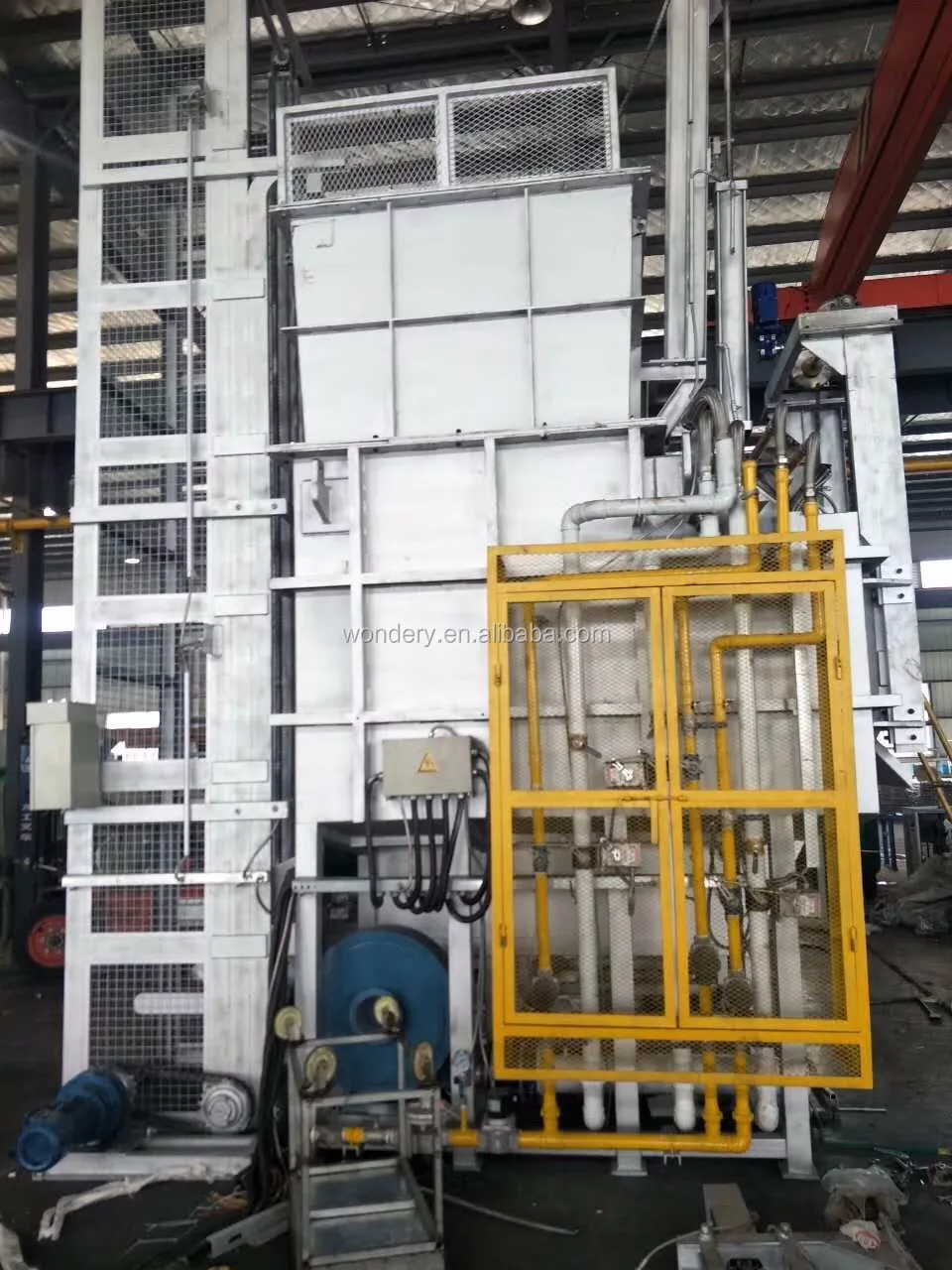

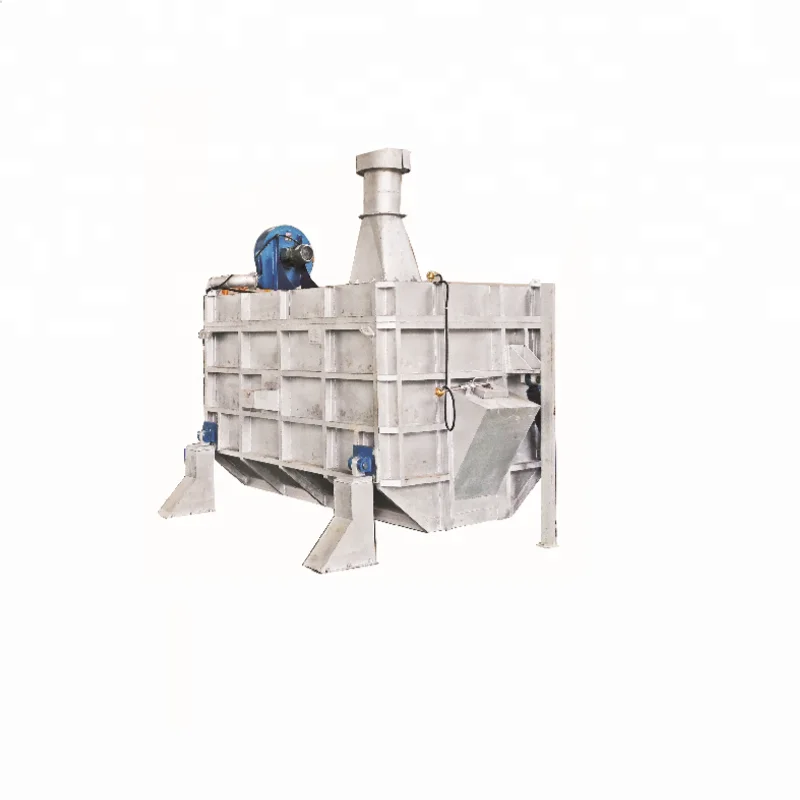

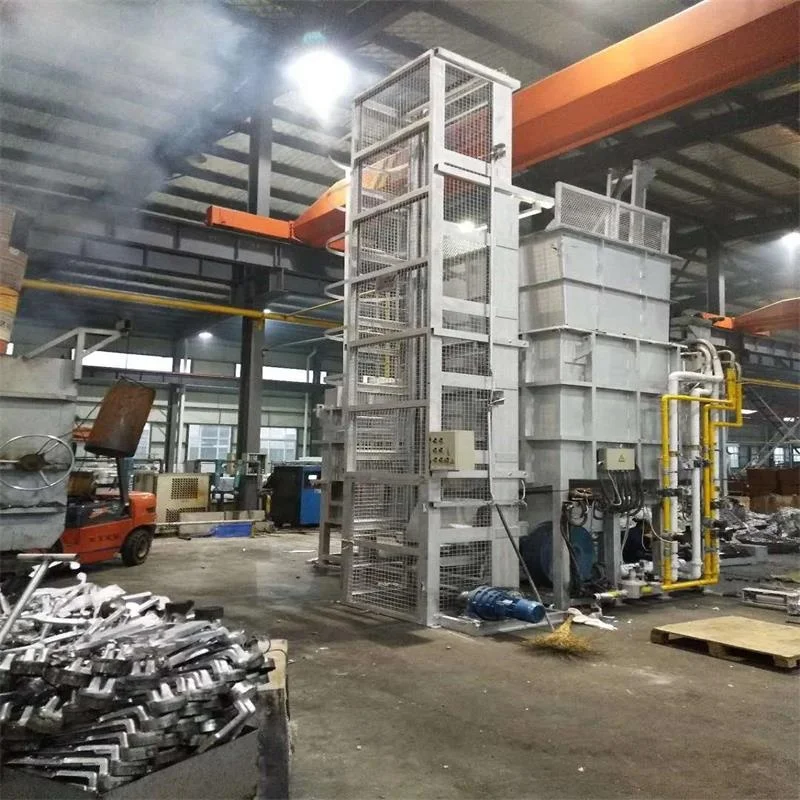

Gas fired continuous reverberatory melting and holding furnace has a compact structure for both melting and holding aluminum liquid. The melting chamber is formed by once-forming casting material, which has a high strength and a long service life. The furnace is equipped with famous brand burner, which has functions of automatic ignition and temperature control. The furnace also has an over-temperature alarm device.

Main Features

1 )  The furnace employs the bright flame burner to reduce generation of oxides and improve the radiation capacity of the flame. Combustion is complete, and heat efficiency is high.
2 )  The metal loss rate is less than 1.5%.
3 )  The furnace body has a compact and firm structure. It is scientifically designed without dead corners, and easily cleaned.
4 ) The fume heat is utilized to save energy loss and improve heat efficiency. The heat efficiency reaches more than 50%.
5 )  The furnace works with a variety of fuels, such as natural gas and liquefied gas.
6 )  The hearth employs quality once-forming casting material with a service life of more than 5 years.
7 )  The control system employs the advanced PLC and touch screen system with easy operation, safety, reliability, and easy maintenance.

Model Table
Model
Melting Rate (kg/h)
Holding Capacity (kg)
Height (mm)
Long (mm)
Width (mm)
WR-RJL-300
300
1000
5000
4350
2650
WR-RJL-500
500
1500
5100
4650
3000
WR-RJL-750
750
2000
5500
3800
3600
WR-RJL-1000
1000
3000
5500
4200
3800
WR-RJL-1500
1500
4000
6450
4550
4000
WR-RJL-2000
2000
5000
6600
4700
4000
WR-RJL-2500
2500
6000
6600
4980
4000
WR-RJL-3000
3000
8000
6800
5150
4000
Certifications
Packing & Delivery
Packaging



Packaging Details
Gas Fired Continuous Reverberatory Melting And Holding Furnace is very big, and it is usually nude packed. The parts are well fixed inside the container with the strap, steel wires, and plywood wedges.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the furnace, training how to use the furnace.

* Engineers available to service machinery overseas.

Related Products

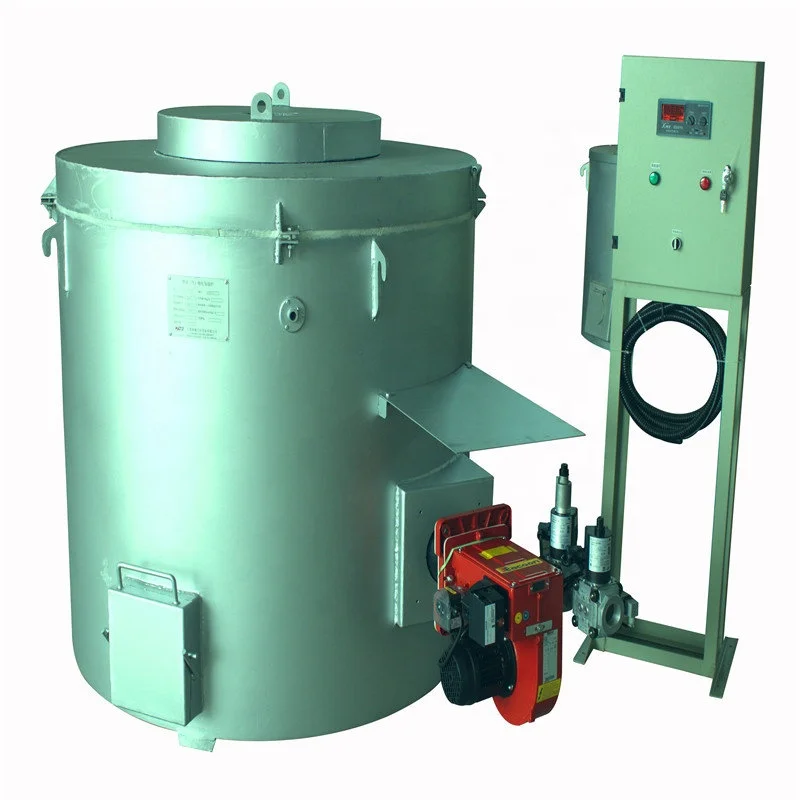

Aluminum Crucible Melting Furnace

99.8% Response Rate

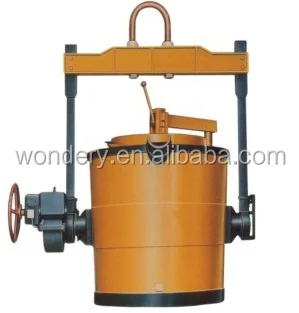

Crane Lifting Aluminum Ladle
