Oil Fired Lead Powder Rotary Melting Furnace 2000kgs

FOB Reference Price:Get Latest Price
$15,000.00 - $31,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WR-ZLQ-2000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Oil Fired Lead Powder Rotary Melting Furnace
Usage:
Melting Furnace
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Voltage:
380, customized
Dimension(L*W*H):
2.7*2.1*2.3
Weight:
6Ton
Certification:
ISO CERTIFICATE
Power (kW):
11
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
product name:
Oil Fired Lead Powder Rotary Melting Furnace
fuel:
diesel oil, heavy oil, waste oil, etc
type:
rotary furnace
capacity:
2000kg
refractory material:
casting cement used
refractory lining life:
5 years on average
Max temperature:
1000 degree celcius
burner brand:
Riello brand, Italy
Power(W):
2000kg
Product Certification Verified
CE Certified.
Valid from 2015-09-08 until 2049-12-31
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case Suitable for Sea Transportation
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

Product Application

The lead powder rotary melting furnace oil fired is used for melting and recycling lead materials.

The burner system employs famous brand gas burner, which has the advantages of automatic ignition, flame protection and complete combustion.


The shape of the furnace is oval. Both sides of the furnace hearth are casted by special high strength and unshaped refractory casting cement.. The furnace has high speed melting rate, good heat preservation performance, low consumption, low using cost, safety and reliability. It can be used for melting and holding at same time.
lead powder rotary melting furnacelead powder rotary melting furnacelead powder rotary melting furnace

SPECIFICATIONS FOR Lead Powder Rotary Melting Furnace 2000kg

Burning System
Burner type
Oil burner
1set
Max consumption
kg/hour
35-45
Diesel Oil heat value
kcal/kg
9600
Melting cycle
hours/cycle
2
Working temperature
degree celcius
600-700
Max temperature
degree celcius
850

Furnace body
Capacity
kgs
2000 kgs lead
Overall size
m
2.7*2.1*2.3
Rotary speed
circle/min
1 circle per minute

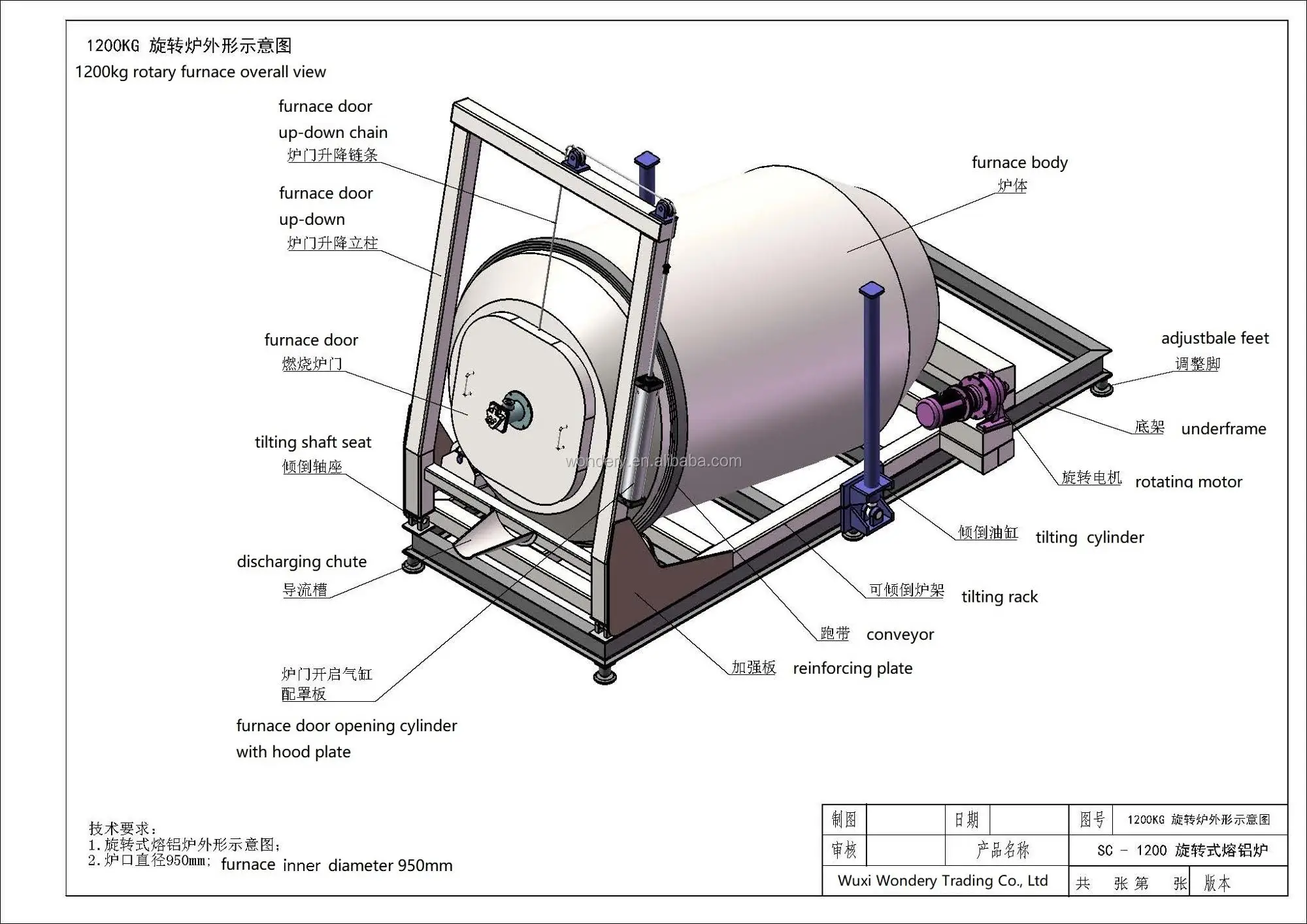

Structure Introduction

The lead powder rotary melting furnace body is comprised of refractory layer, heat preservation layer and insulation layer. The furnace hearth is casted by high strength and unshaped refractory casting cement. There is a pressure ring in the furnace to extend the flame's stay time in the furnace, improve the melting speed and reduce energy consumption. The heat preservation layer and insulation layer are composed of ceramic fibers. Therefore, the furnace body heat storage is small, temperature rise is fast, heat preservation is good, energy consumption is low.


Burner of the lead powder rotary melting furnace: The burner fan, magnetic valve, igniter and flame monitor constitute as a whole. Turn on the power supply, and the burner can be started.

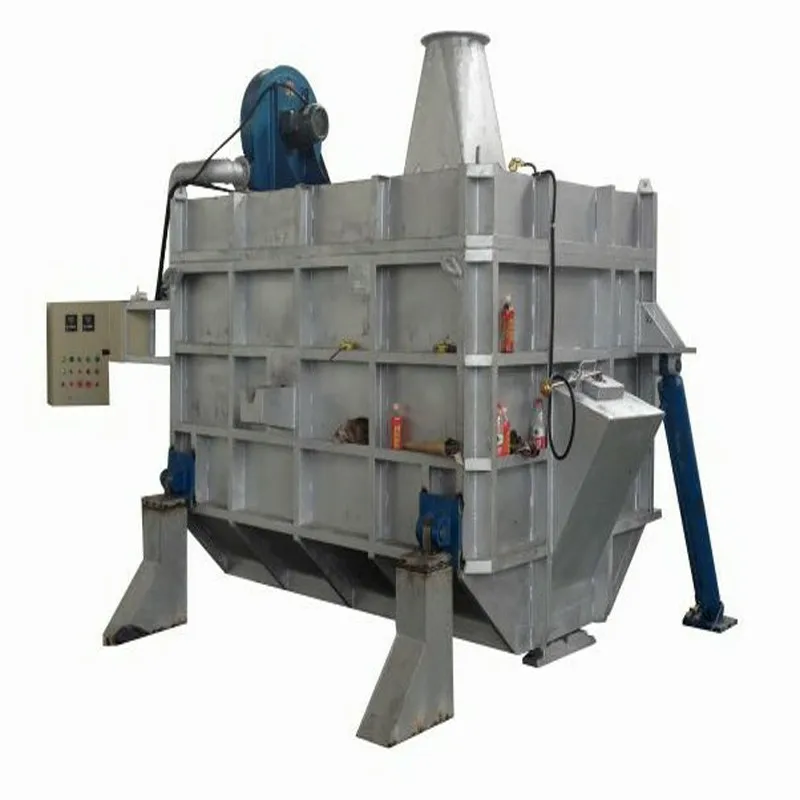

Detailed Images

Main Features

Name: Lead Powder Rotary Melting Furnace Oil Fired
Brand: WONDERY
Original: China


The furnace hearth is built with once-forming casting material with a high strength. The life service is more than 5 years.

The hearth is lined with lead non-stick casting cement supplied by Allied Mineral Products (Tianjin) Co., Ltd

Our Company

Oil Fired Lead Powder Rotary Melting Furnace Oil Fired 2000kgs

Our company supplies the oil fired or gas fired lead powder rotary melting furnaces, oil or gas fired zinc powder rotary melting furnace, gas oir oil fired aluminum scrap melting furnaces, reveberatory aluminum melting furnace, continuous aluminum melting furnae, aluminium melting furnace crucible melting furnace, aluminum liquid transfer ladles, aluminum ladle preheater, electric aluminium melting furnace, electric aluminium holding furnace, gas fired aluminum holding furnace, box type resistance furnace, etc.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the furnace, training how to use the furnace.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2.7*2.1*2.3m
Weight
7ton gross weight



Packaging Details
The normal package is plywood. Fumigating is not needed.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
lead powder rotary melting furnace
lead powder rotary melting furnace
lead powder rotary melting furnace
