Automatic Auto Radiator Aluminium Fin Making Machine

FOB Reference Price:Get Latest Price
$26,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CPJ-100
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 90 75 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Type:
FIN MAKING MACHINE
Place of Origin:
JIANGSU
Brand Name:
WONDERY
Certification:
CE
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 YEAR
machine name:
fin making machine or fin rolling machine
fin use:
radiator, condenser or other heat exchanger products
fin type:
opening, without opening, wavy shape
working principle:
fin rolling mechanism
control system:
PLC and HMI
automation level:
fully automatic
pneumatic system working pressure:
0.6Mpa
PLC brand:
Delta, Taiwan
Fin Rolling Unit Life:
about 200, 000,000 fin crests
Working Speed:
0-100M/Minute
Product Certification Verified
CE Certified.
Valid from 2017-12-28 until 2022-12-27
Supply Ability
Supply Ability:
300 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood case suitable for sea transportation
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 90 75 To be negotiated
Video Description
Product Description

Product Application

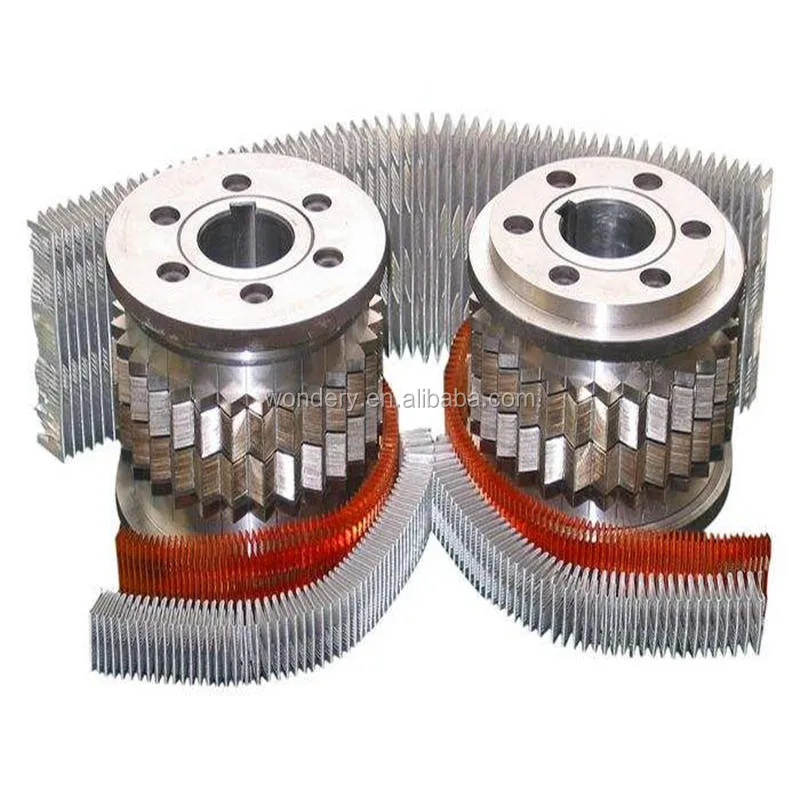

  Hot Selling Fin Rolling Machine is used to produce heat exchange wavy fins with or without windows.

The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.
  The  fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily
set through the touch screen.
SPECIFICATIONS FOR FiN ROLLING MACHINE

Fin Forming Unit
Aluminum Foil Thickness
mm
min 0.07
Fin forming blade material
cobalt-containing high speed steel forged parts
Aluminum foil material
4343/3003/4343           H14 or H16
Fin forming blade life
more than 200 million fin convolutions
Fin Coil Information
Inner Diameter of Coil
mm
200
Outer Diameter of Coil
mm
max 1500
Productivity

Feeding speed
m/min
0-100
Fin convolution per minute
1000-4000
Cutting accuracy
+/-0 fin convolution
Machine Weight
Net Weight
kg
1800
Overall Dimension
L*W*H
mm
3500*900*1800
Applications
Related Products

Plastic Tank Crimping Machine

99.8% Response Rate

Core Assembly Machine

99.8% Response Rate

Leak Tester

99.8% Response Rate

OUR COMPANY

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other products,

and HVAC condensers and evaporators.

Auto Condenser Production Line
Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.

Auto Radiator Production Line
Brazing radiator machines: fin machine, radiator core builder machine, plastic tank clinching machine, leak detector, header and side plate mold, continuous brazing furnace;
mechanical radiator machines: high speed fin punching machine, fin die, tube-to-fin expansion machine, tube-to-header expansion machine, plastic tank clinching machine, etc;
Copper radiator making machines: copper fin machine, copper radiator core assembly machine, tube making machine, copper radiator brazing furnace, copper radiator header mold, etc.

 Evaporator Production Line
Including: fin die (single-punch type or progressive type); serpentine tube bender; evaporator core builder machine;


HVAC Evaporator and Condenser Production Line
Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube

straightening and cutting machine; fin press line; progressive fin die; vertical/horizontal expansion machine; others.


Molds: aluminum header plate mold, aluminum radiator plastic tank radiator, fin die (air conditioner fin die), etc;

OUR MAIN CUSTOMER
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3500 (L) * 900 (W) * 1800 (H)
Weight
1.8 T



Packaging Details

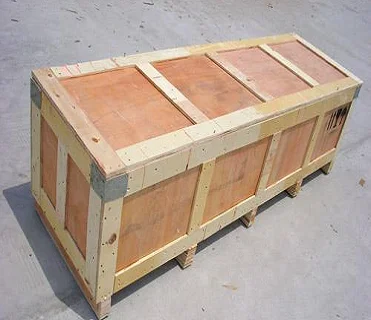

The normal package is plywood box with dessicant bag and wrapping film. Fumigation is not needed.
