Continuous Gas Power Atmosphere Aluminum Brazing Furnace For Condensed and Radiator Cores

FOB Reference Price:Get Latest Price
$150,000.00 - $500,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
NB
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Resistance Furnace
Usage:
Heat Treatment Furnace
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Voltage:
Requirement
Dimension(L*W*H):
Custom Made
Weight:
20-35Ton
Certification:
CE
Power (kW):
560
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
machine name:
Electric Atmosphere Controlled Brazing Furnace
use:
aluminum-aluminum welding; copper-copper welding, etc
muffle length:
bigger than 10m
drying oven:
gas fired
mesh belt speed:
200-1000mm depending on furnace size
electrical control system:
PLC and touch screen control
mesh belt width:
bigger than 1000mm
protective atmosphere:
nitrogen
energy medium:
electricity and gas
Power(W):
Adjustable
Product Certification Verified
CE Certified.
Valid from 2013-08-27 until 2049-12-31
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
nude package duly fixed inside the container; suitable for sea transportation
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

Product Application

The aluminum radiator brazing furnace is used to braze aluminum heat exchangers such as radiators, intercoolers, evaporators, and heater radiator under protective nitrogen atmosphere. The flux used is NOCOLOK flux.
The aluminum radiator brazing furnace is also called as brazing furnace, radiator brazing furnace, aluminum brazing furnace,continuous brazing furnace, atmosphere brazing furnace.

Model
Temperature
Working size (mm)
Brazing oven effective length
Total length
NB-1000-250-10M
Brazing temperature:630°C;

Drying temperature: 250°C

Degreasing temperature:180°C

1000×250
10m
43.7m
NB-800-250-11M
800×250
11m
48.4m
NB-1000-250-11M
1000×250
11m
48.4m
NB-1200-250-11M
1200×250
11m
48.4m
NB-1200-250-16M
1200×250
16m
65.0m
NB-800-220-8M
800×220
8m
38.9m

Advantages

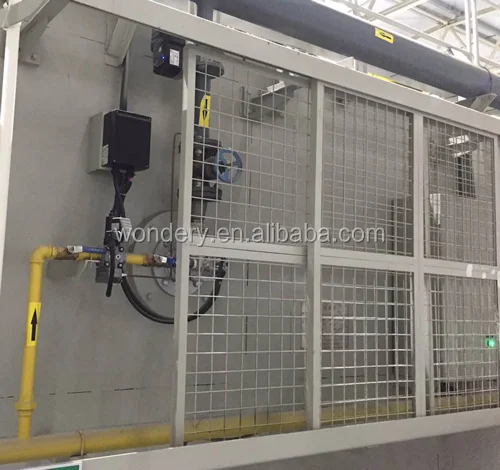

a) Natural gas burners and control solenoid valves are all well-known Sinon brand in China.
b) Each burner is equipped with an independent gas valve control system.

C) The temperature controller automatically adjusts the flame size by air-fuel ratio to achieve uniform temperature control.
d) The drying oven adopts independent conveyor belt and stepless variable frequency speed drive system.
e) Cleaning and maintenance openings are arranged on one side of the furnace body.

f) The preheater is equipped with a heat exchanger for heat recovery and utilization. The heat discharged can be reclaimed twice to the drying oven for use, and the air is preheated to save energy.The aluminum radiator brazing furnace is also called as brazing furnace, radiator brazing furnace, aluminum brazing furnace,continuous brazing furnace, atmosphere brazing furnace.

Certifications

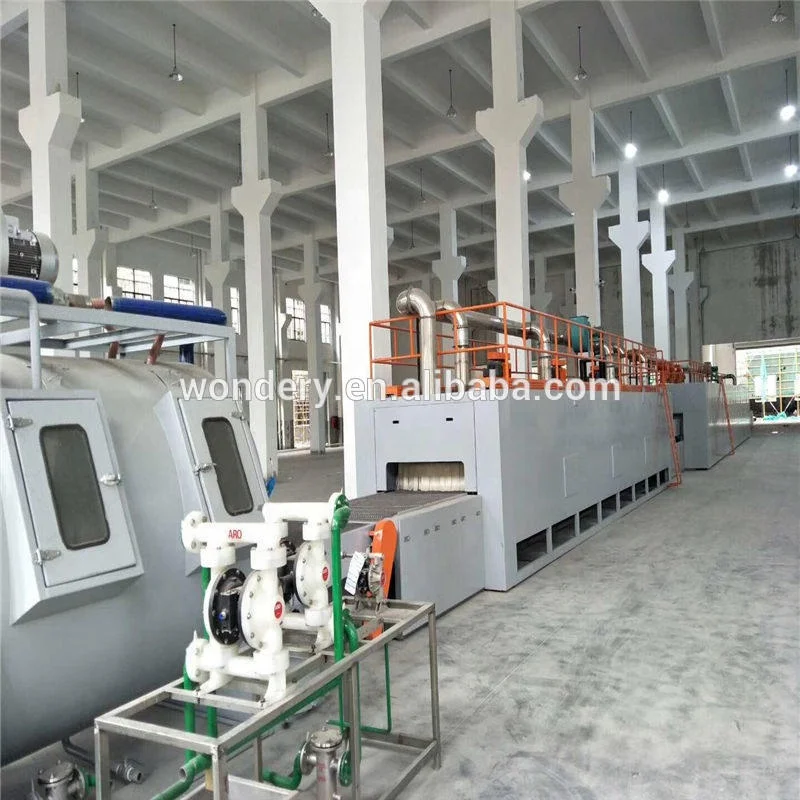

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the aluminum brazing furnace, training how to use the aluminum brazing furnace.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3*40HQ
Weight
22Ton



Packaging Details
The normal package is plywood case, and well fixed inside the container. The aluminum radiator brazing furnace is also called as brazing furnace, radiator brazing furnace, aluminum brazing furnace,continuous brazing furnace, atmosphere brazing furnace.
