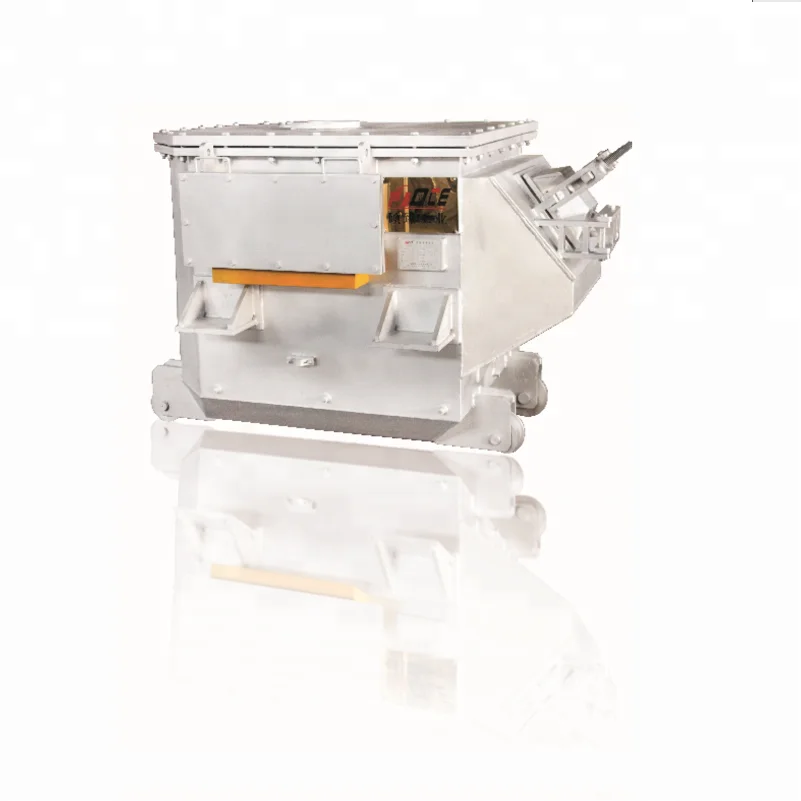

Energy Saving Type Electric Power Aluminum Holding Furnace

FOB Reference Price:Get Latest Price
$20,000.00 - $130,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WR-BCD-2000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Resistance Furnace, stationary
Usage:
Holding Furnace
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Voltage:
220V
Dimension(L*W*H):
320X320X226
Weight:
6
Certification:
CE Certificate
Power (kW):
33
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support
Use:
aluminum holding furnace
Capacity:
2000kg
Energy:
electricity
Max temperature:
850 degree celsius
Temperature accuracy:
+/-2 degree celsius
Refractory material:
castbale material
Castable material service life:
3-5 years
Burner Brand:
quality domestic brand
Ladel mouth height:
1250mm
Product Certification Verified
CE Certified.
Valid from 2015-09-08 until 2049-12-31
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude Pack or Plywood Case Suitable for Sea Transportation
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

Main Features

1) Ultra-high heat utilization efficiency, and low power consumption. It saves power consumpstion by more than 40% compared wih the traditional radiation type holding furnace.
2) There is no aluminum liquid burning loss or slag hanging phenomenon.
3) The furnace adopts high quality refractory material with a long lining service life (up to 5 years under normal use condition)
4) Adopt Japanese imported protective tube which has a long service life, safe and stable.
5) PID temperature control system with an accuracy of ±2℃.
6) The Control Panel has multiple safety functions such as aluminum liquid over-temperature alarm, atmosphere over-temperature alarm, heater circuit breakage alarm, etc.

aluminum holding furnacealuminum holding furnacealuminum holding furnace

Model Table
Model
Holding Capacity (kg)
Rated Power (KW)
Length (mm)
Width (mm)
Ladle Mouth Height (mm)
WR-BCD-300
300
12
2350
1450
950
WR-BCD-500
500
15
2600
1750
950
WR-BCD-800
800
18
2600
1750
1050
WR-BCD-1000
1000
21
3050
1950
1100
WR-BCD-1200
1200
24
3050
1950
1150
WR-BCD-1500
1500
27
3100
2050
1250
WR-BCD-2000
2000
33
3200
2260
1250
WR-BCD-2500
2500
39
3300
3300
1250
WR-BCD-3000
3000
45
3300
3300
1250
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the furnace, training how to use the furnace.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
350 * 300 * 300mm
Weight
6T



Packaging Details
The normal package is nude pack or plywood box. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
aluminum holding furnacealuminum holding furnace
