Continuous heat treatment Mesh Belt Sintering Furnace

FOB Reference Price:Get Latest Price
$80,000.00 - $400,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
RCWA
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Usage:
Heat Treatment Furnace
Type:
Resistance Furnace
Brand Name:
WONDERY
Voltage:
380V
Dimension(L*W*H):
Based on the equipment
Certification:
CE
Weight (T):
35 T
Power (kW):
350
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Applicable Industries:
Manufacturing Plant
use:
heat treatment of bearings, nails, screws and other mechanical parts
parts to be treated:
fittings, fastening, chains, bearings and mechanical parts
furnace type:
roller mesh belt resistance furnace
features:
PID temperature regulation
heat treatment process:
carburizing, carbo-nitriding, bright quenching, tempering
main refractory lining brand:
ISOLITE, Morgan, HSA (Japan)
voltage:
according to customer's requirement
protective atmosphere:
methanol, propane, ammonia
energy:
electricity
production capacity:
160-1000kg/h
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
10 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Nude package for big parts, steel case or plywood case package for spare parts and accessories, PE weaving film for control cabinet
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Description

Product Application

Widely used for heat treatment of mechanical parts like automobile fittings, fastening, chains, bearings and mechanical parts for tools etc. The furnace has the functions of automatic charging, carburizing (or carburizing & nitriding), quenching, cleaning, cooling and tempering. The computerizing office management is available through a computer control system equipped.

mesh belt furnace

Technical Parameter For Continuous heat treatment Mesh Belt Sintering Furnace
Working Temperature
Precleaning machine
40-60
Quenching furnace
820-950
Quenching tank
60-80
Working Temperature
Post-cleaning machine
40-60
Tempering furnace
200-450
Furnace Atmosphere
Quenching furnace
propane, methonal, ammonia
Tempering furnace
air

Main Features

1) To meet the production needs of fastening parts, the furnace employs Taiwan technology, and improves its energy-saving effect in the area of refractory lining.
2) The production line employs low-voltage heating through the transformer to prolong the service life of the heating tubes.

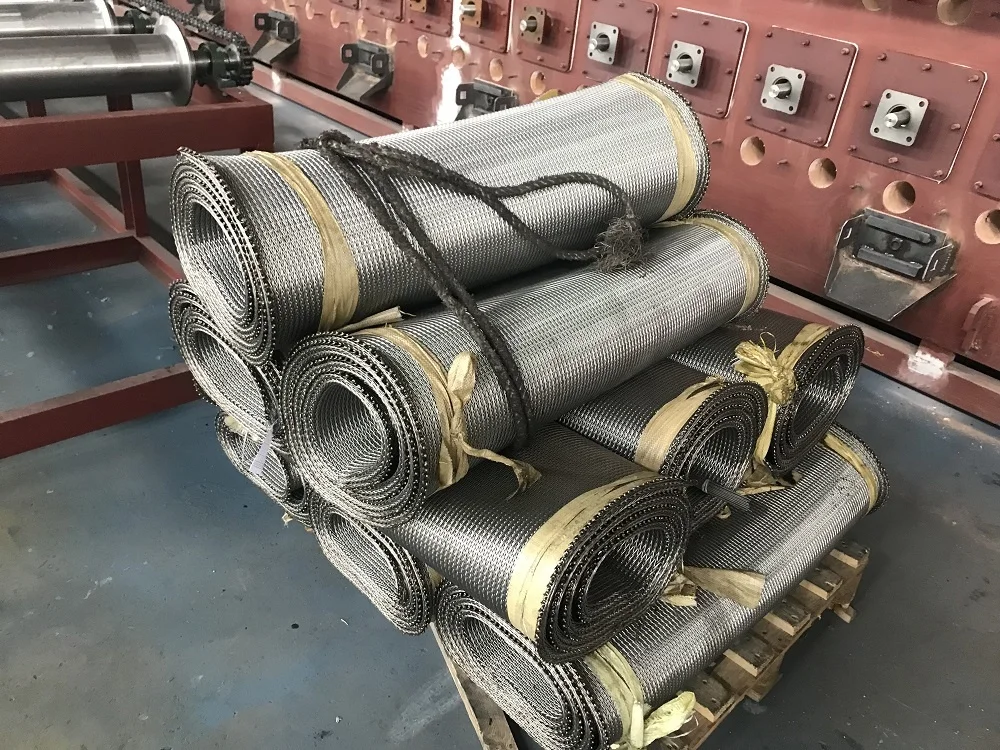

3) The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears a minimum tension.
4) The rollers are supported by special high-pressure sealed bearing.
5) The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the mesh belt.

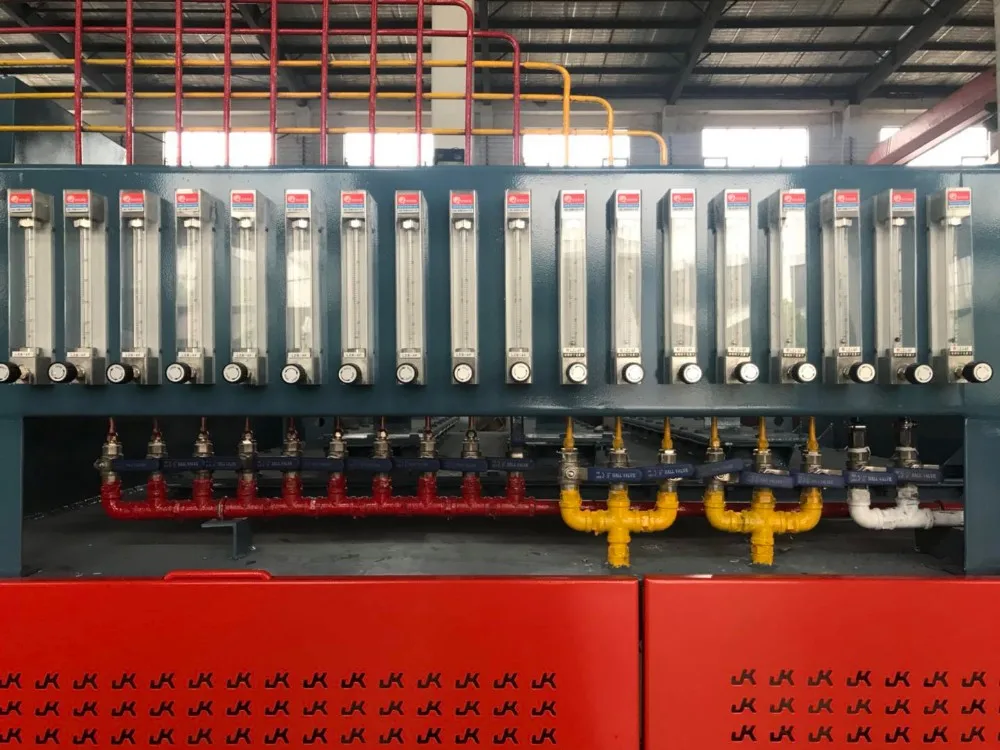

6) The drip-in atmosphere is gasified by a gasifier and
then sent into the furnace. The atmosphere is monitored and controlled continuously by an oxygen probe.
7) The hot mesh belt returns back to the entrance of the furnace and preheats the cold partss,
which saves energy greatly.

Model Table
Model
Rated Power (KW)
Rated Temperature ( ℃ )
Working Size  (mm)
Productivity (kg/h)
RCW-1A
100
920
400*4000*100
160-200
RCW-2A
110
920
400*4700*100
180-250
RCWA-2A
120
920
500*4000*100
180-250
RCWA-2B
130
920
500*4700*100
250-300
RCWA-3
160
920
600*4700*100
300-350
RCWA-3A
160
920
500*6000*100
300-350
RCWA-4
180
920
600*6000*100
350-420
RCWA-4A
180
920
800*4700*100
450-520
RCWA-5
220
920
800*6000*100
450-520
RCWA-6
300
920
800*7600*100
550-720
RCWA-7
380
920
1000*7600*100
880-1000
Detailed Images

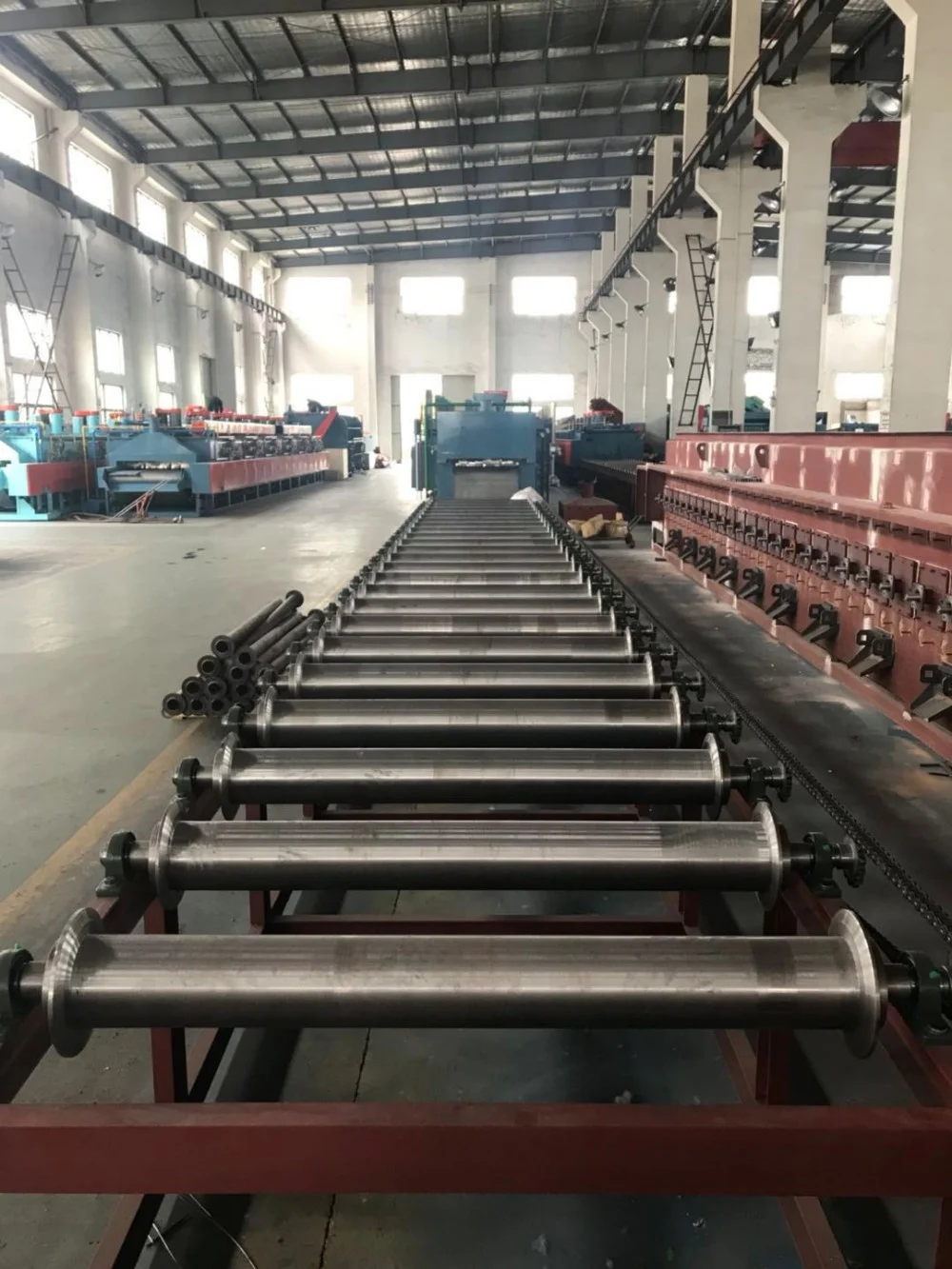

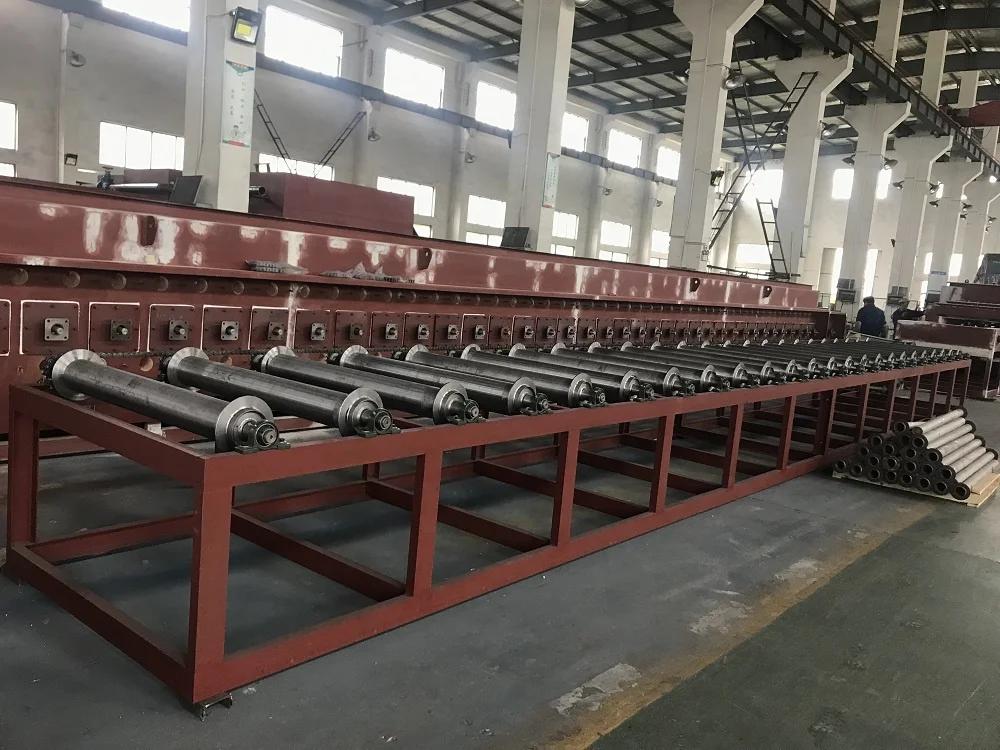

Support Rollers

Name: support rollers

Material: SUS304 or SUS310

Original: Wuxi, China

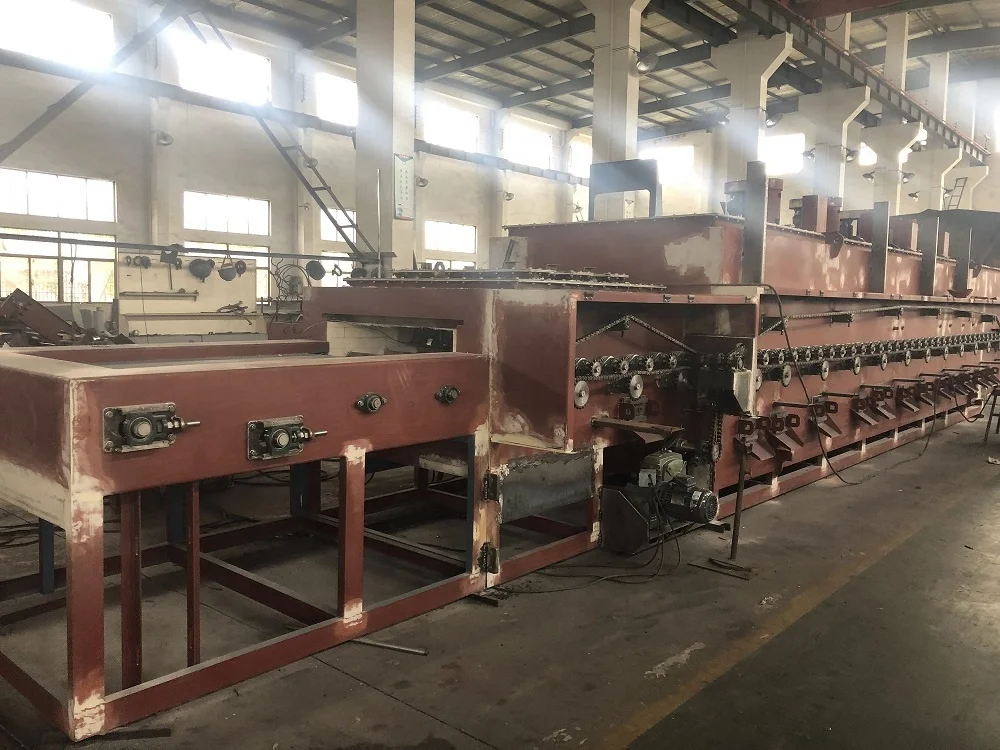

Furnace body

The furnace body is made of thick material.

The main refractory material used is of quality brand. ISOLITE (Malaysia), HSA (Japan), etc.

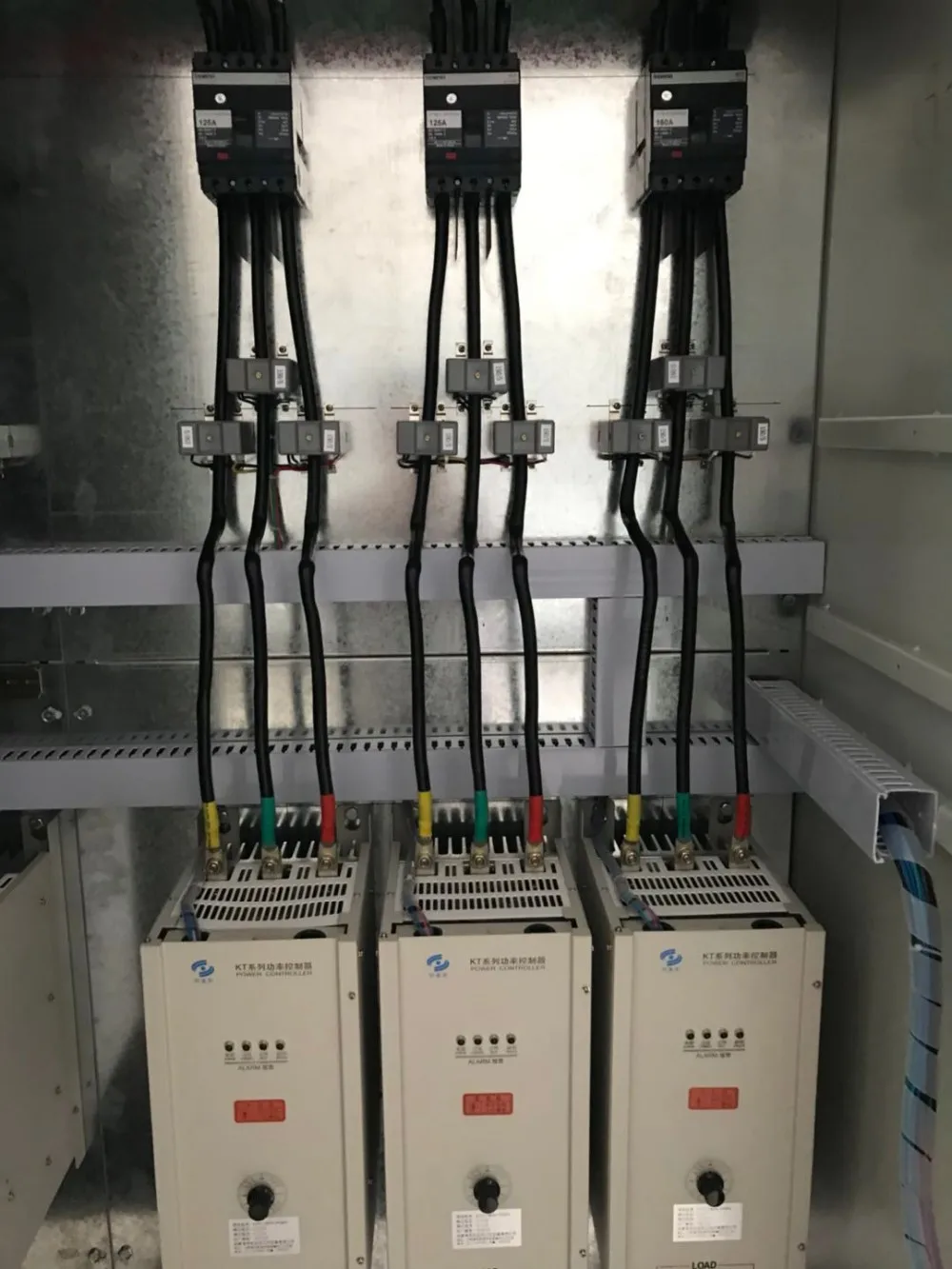

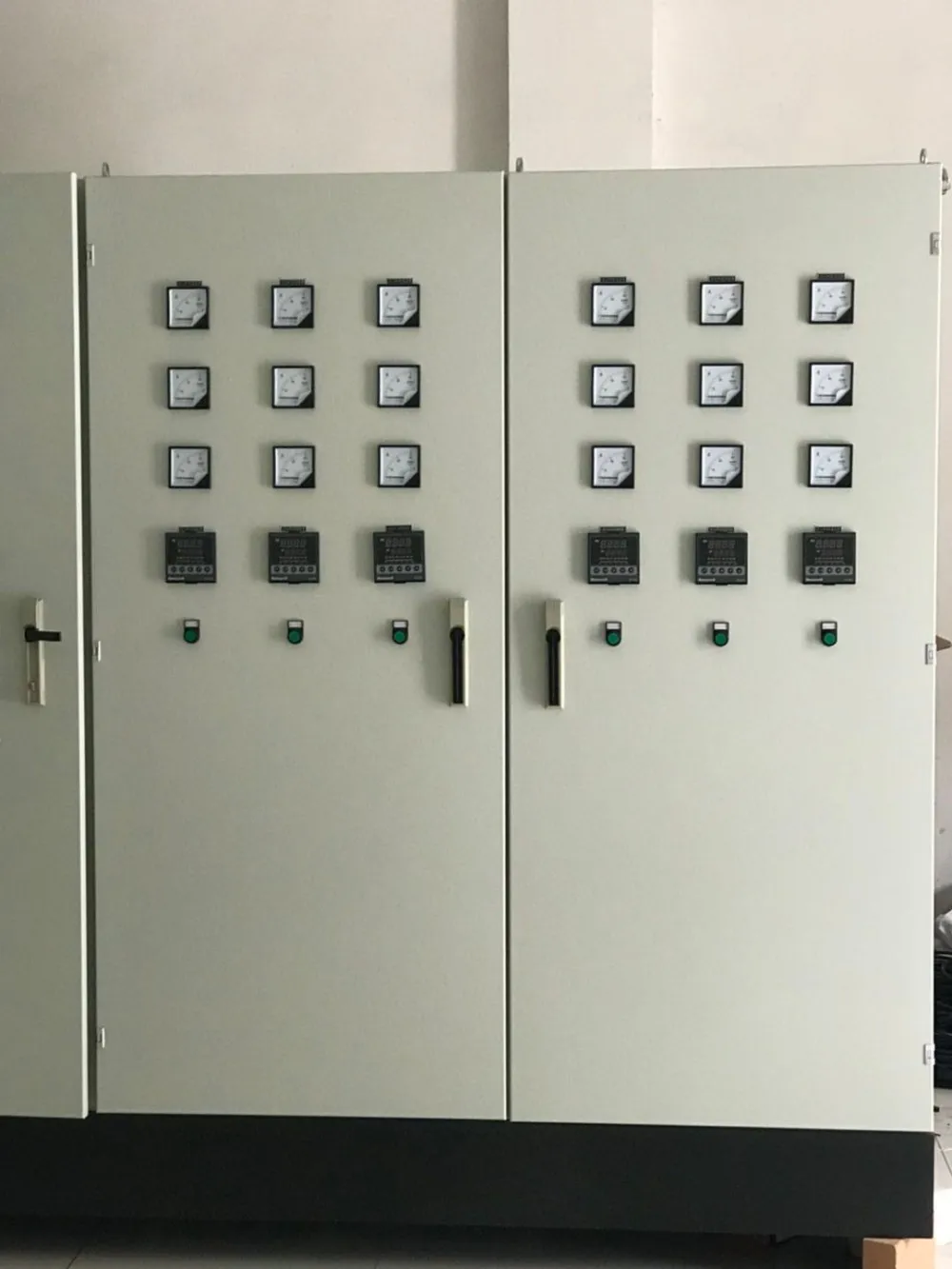

Control Cabinet

Name: PLC, touch screen, temperature controller, temperature recorder,etc.
Brand: Siemens, Omron, Schneider, CHINT, etc.
Original: Germany, Japan, French, etc.

Touch screen and button lable: all shown in English language (other languages are also provided if required).


Company Introduction
Our company is a professional supplier of heat treatment furnaces. We mainly supply industrial furnaces such as mesh belt quenching furnace, pit type annealing furnace, mesh belt tempering furnace for springs, pusher furnace, roller hearth furnace, rod furnace, roller furnace, double row pusher furnace, chain conveyor mesh belt furnace, mesh belt conveyor furnace for fasteners, V-conveyor mesh belt furnaces for heavy springs, etc. Our furnaces are mainly used to carry out heat treatment for fasteners,
nails, drywall screws, springs, bearings, shafts, chains, etc.
Our company has exported its industrial furnaces to the following countries: Russia, Turkey, Egypt, Saudi Arabia, Kenya, Bolivia, Pakistan, Australia, Israel, Qatar, etc.
Our factory covers an area of 16500 m2, with a production workshop area of 10,000 m2. With advanced technology as the guide, sincere management as the concept, and high-quality products, the company provides customers with all-round sincere service from product design, manufacturing, installation and commissioning, personnel training, technical support and after-sales service, and wholeheartedly welcomes new and old friends to visit us.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the furnace, training how to use the furnace.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
various size
Weight
10-60Ton



Packaging Details
The furnace is usually nude packed, but duly fixed inside the container. The spare parts and accessories are packed in a plywood case or a steel case.
mesh belt furnace mesh belt furnace
mesh belt furnace
Packaging
Size
various size
Weight
10T to 60T


Container Details
The furnace is usually loaded into the common contain type (20GP, 40GP, 40HQ).
mesh belt furnace mesh belt furnace
mesh belt furnace
Related Products

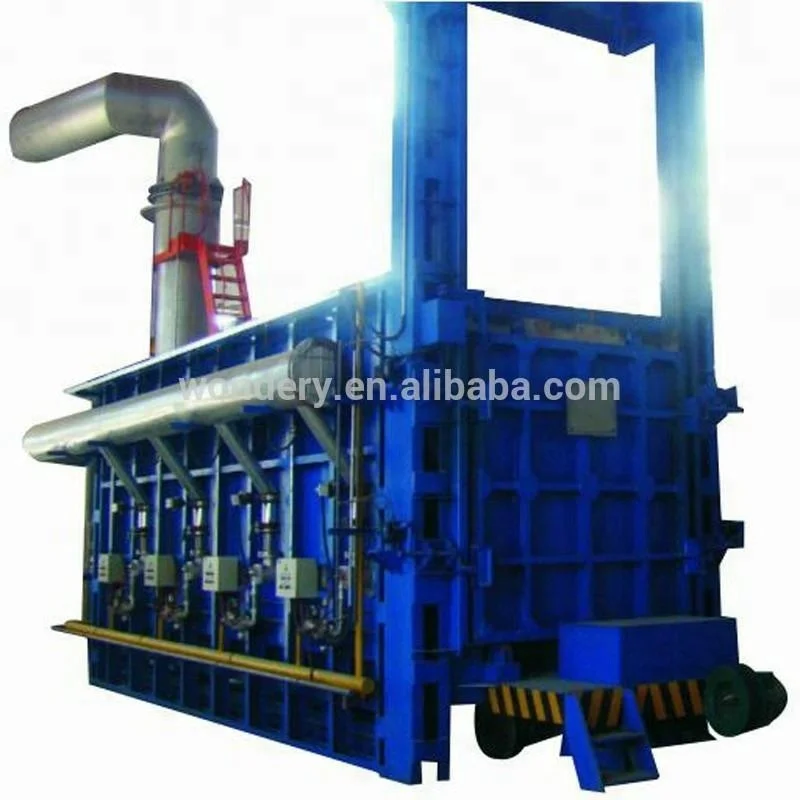

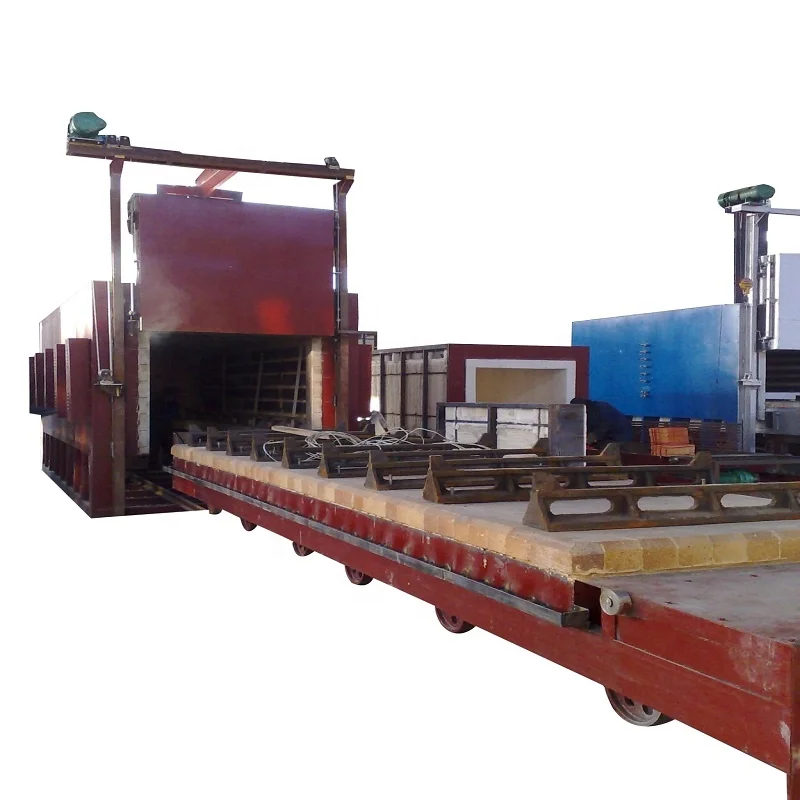

Electric Resistance Bogie Hearth Furnace
