Hot sale Gas Fired Bogie Hearth Car Bottom Furnace

FOB Reference Price:Get Latest Price
$10,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
RTQ2
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Gas Bogie Hearth Furnace
Usage:
Heat Treatment Furnace
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Voltage:
Onsite Condition
Dimension(L*W*H):
based on furnace size
Weight:
based on furnace size
Certification:
ISO CERTIFICATE
Power (kW):
20
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Furnace type:
bogie hearth furnace for heat treatment
Energy medium:
gas
PLC control:
Siemens S7-200 PLC
refractory lining:
silicate aluminum fiber precompressed blocks
bogie driving mechanism:
reducing gear and motor or manual system
bogie protection system:
limit switch at both ends
furnace door lifting mechanism:
electrical hoist or manual system
Gas burner brand:
SINON, Guangzhou, China
valve system:
imported brands
electrical components:
Schneider, CHINT or other quality components
Product Certification Verified
CE Certified.
Valid from 2015-09-08 until 2049-12-31
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
nude package or steel case package, suitable for sea transportation
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

Product Application

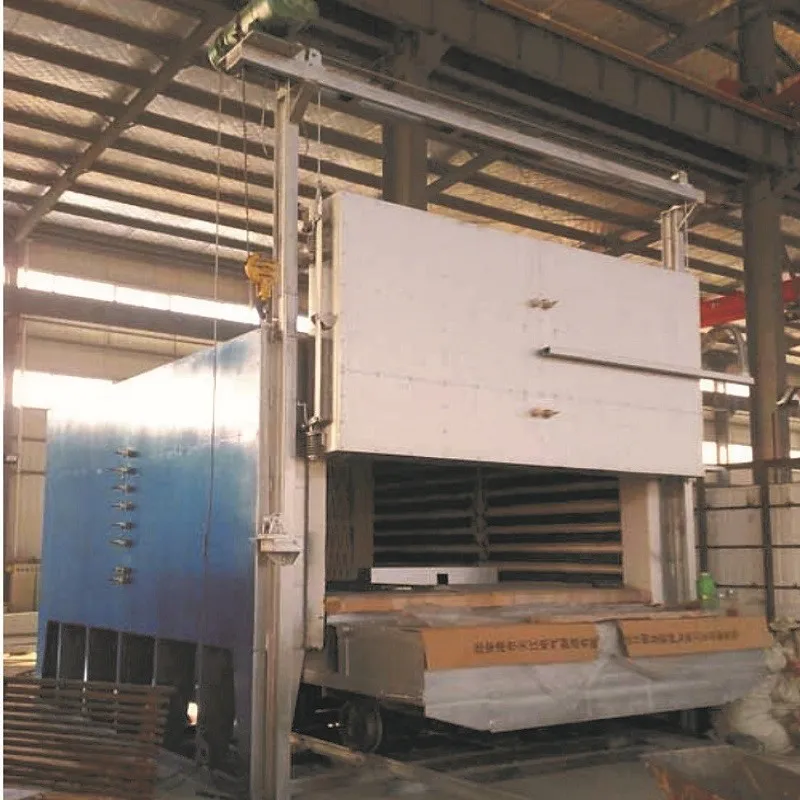

Hot sale Gas Fired Bogie Hearth Car Bottom Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.

bogie hearth furnacebogie hearth furnacebogie hearth furnacebogie hearth furnace

SPECIFICATIONS FOR Hot sale Gas Fired Bogie Hearth Car Bottom Furnace
Temperture contral
system
Rated Temperature
1300
common heating temperature
400-1250
Furnace body exterior temperature
≤ 55 + room temperature
Temperature control system precision
≤±1
Uniformity of furnace temperature
≤±10
Gas burning system
Fuel
natural gas
Gas calorific value
Kcal/m3
7000
Gas supply pressure
Mpa
0.05-0.1
Mechanical system
door lifting mechansim
electric hoist
bogie driving system
reducing motor
door and bogie moving speed
m/min
6-8
Refractory lining
hearth lining
aluminum silicate fiber
bogie lining
refractory brick

Main Features

1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

3) Heating components: high temperature resistance alloy wires and strips.

4) Low noise, energy-friendliness, and stable performance.


5) Advanced CAD design.


6) Years of experiences in heat treatment process.

Detailed Images

Control Cabinet

Name: GGD type electrical control cabinet

Brand: CHINT, SIEMENS, Schneider, Omron, etc.

Original: China, Germany, French, Japan, etc.


Burner

Name: SINON burner (Germany technology)
Brand: SINON
Original: China

Gas piping system

Name: air and gas pipe system
Brand: SINON burner, imported
Original: Germany

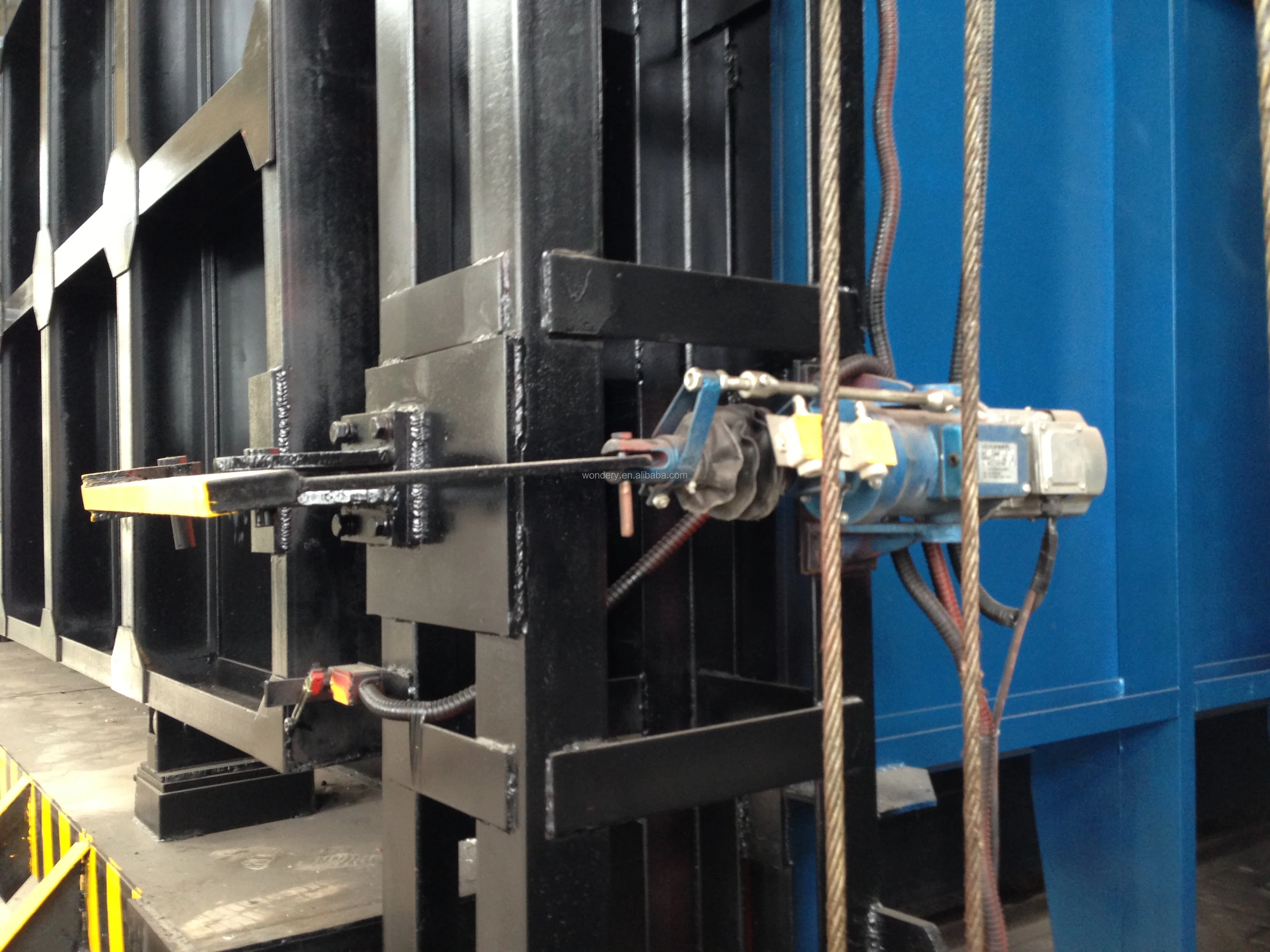

Push Rod Sealing Mechanism

Name: push rod sealing mechanism
Brand: domestic quality brand
Original: CHINA
The door and furnace door is tightly sealed together to prevent heat loss.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
depending on furnace effective size
Weight
1Ton to 30Ton



Packaging Details
Hot sale Gas Fired Bogie Hearth Car Bottom Furnace is duly packed and fixed inside the container.   The control cabinet is packed with PE film.
Packaging
Size
depending on furnace effective size
Weight
1T to 30Ton



Container Details
The small furnace can be loaded into 20GP, 40GP, or 40HQ. The big furnace should be loaded in the 20FR or 40FR.
