1000kg Tilting Oil Fired Copper Scrap Metal Melting Furnace Price

FOB Reference Price:Get Latest Price
$9,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WR-RCUY-300 WR-RCUY-500 WR-RCUY-800 WR-RCUY-1000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Oil Fired Furnace
Usage:
Melting Furnace
Place of Origin:
Jiangsu, China
Brand Name:
WONDERY
Voltage:
380V
Dimension(L*W*H):
loaded into 20GP
Weight:
2T to 6T
Certification:
ISO CERTIFICATE
Power (kW):
5
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
use:
scrap aluminum melting furnace
fuel used:
diesel oil, heavy oil or other fuel
furnace type:
titling or stationary
furnace capacity:
500KG,1000KG ,or designed as customer request
refractory material:
casting material used
casting material life:
3 years on average
burner brand:
Riello, Italy
crucible material:
graphite crucible; Vesuvius brand
temperature control accuracy:
plus/minus 2 degree celsius
max furnace temperature:
1400 degree celsius
Product Certification Verified
CE Certified.
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Case Suitable for Sea Transportation
Port
Shanghai Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Product Application

The tilting oil fired copper scrap metal melting furnace is used to melt copper scrap at a rated temperature of 1250°C.

copper scrap melting furnace copper scrap melting furnace copper scrap melting furnace copper scrap melting furnace

SPECIFICATIONS FOR TILTING TYPE OIL FIRED COPPER SCRAP METAL MELTING FURNACE

Fuel
Diesel
Kcal/kg
9600
Consumption
kg/ton copper
65



Main Performance Parameters
Crucible capacity
kg
1000
 (can be customized)
Melting rate
kg/hour
500
(at continous working status)
Working temperature
°C
1250
Crucible brand

Vesuvius or Morgan
Hydraulic system
Components brand

Domestic brand
Detailed Images

Burning system

Brand: Riello;

Function: temperature control, automatic ignition, flame detection, and automatic start-up or shut-off of the burner based on the temperature upper limit and lower limit.

Furnace lining

Brand: Allied Mineral Porduct Inc or famous domestic brand

Original: USA or China

The casting material has a long service life. It has a life of more than 3 years depending on user's operation conditions.

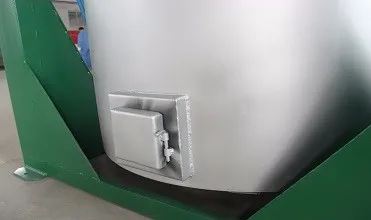

Emergency outlet hole

The furnace body is designed with an emergency outlet hole in case the crucible breaks.

Graphite crucible

The graphite crucible is of quality brand Vesuvius or Morgan.

The capacity of crucible can be customized.

Electrical control system

The electrical control system is of quality brands such as CHINT, Omron, Delixi, etc.

Pipe burning system (optional)

The copper melting furnace could be equipped with our energy saving pipe burning system. Advantages of pipe burning system versus Riello burner:
1) The pipe burning system is more stable in performance with a lower fault rate.
2) The pipe burning system is more energy saving than the Riello burner type. It saves energy about 10% in comparison to the oil burner.
3) The pipe burning system requires a lower maintenance cost because the customer could just replace one individual broken parts instead of changing the burner set.

Model Table

      Type Number
Crucible Specification
Maximum Melting Rate (Kg/h)
Inner Diameter (mm)
Height
(mm)
Capacity
(kg)
WR-RCUY-300
455
500
300
200
WR-RCUY-500
455
600
500
350
WR-RCUY-800
615
700
800
600
WR-RCUY-1000
620
800
1000
700
Our Company

   Wuxi Wondery Trading Co., Ltd is a professional supplier of metal melting furnaces.

  We can supply the following products: electric resistance aluminum crucible melting furnace (300-1000KG), gas or oil fired crucible aluminum melting furnace (300-1000KG), gas or oil fired reverberatory aluminum melting furnace (max 25000KG), continuous gas or oil fired aluminum melting furnace,gas or oil fired aluminum rotary melting furnace (max 10000kg), electric aluminum holding furnaces, gas fired aluminum holding furnaces,gas or oil fired crucible copper melting furnace, zinc ash rotary melting furnace, lead battery rotary melting furnace. Our melting furnaces are mainly used for melting metal with low melting point, and the max working temperature of our furnace is 1350 degree celcius. Our furnaces are widely used in the field of aluminum ingot production, high and low pressure die casting, copper industry, zinc ingot production, and lead battery recycling. Our furnaces have been exported to Qatar, Saudi Arabia, Mexico, Philippine, Kenya, Pakistan, Canada, Egypt,Tanzania, etc.It is our company philosophy to serve every customer with our sincerity, professionalism and full effort. We warmly welcome every customer to come to China, visit us, and build a bright future through our mutual cooperation.

Related Products

Fast Reverberatory

Aluminum Melting Furnace

99.8% Response Rate

Lead Power Rotary Melting

Furnace

99.8% Response Rate

Electric Aluminum Holding

Furnace

99.8% Response Rate

Certifications
Packing & Delivery
Packaging
Size
Various size
Weight
1T to 6T



Packaging Details
If the customer orders the standby crucibles, the crucible is packed by the carton. The crucible is protected by putting foam blocks inside and outside the crucible.
copper scrap melting furnace
copper scrap melting furnace
copper scrap melting furnace
Packaging
Size
Various size
Weight
1 T to 6 T



Packaging Details
The furnace is nude pack or packed inside the plywood casebox. And the feet of the case leaves space for the forklift operation.
copper scrap melting furnace
copper scrap melting furnace
copper scrap melting furnace
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the furnace, training how to use the furnace.

* Engineers available to service machinery overseas.
